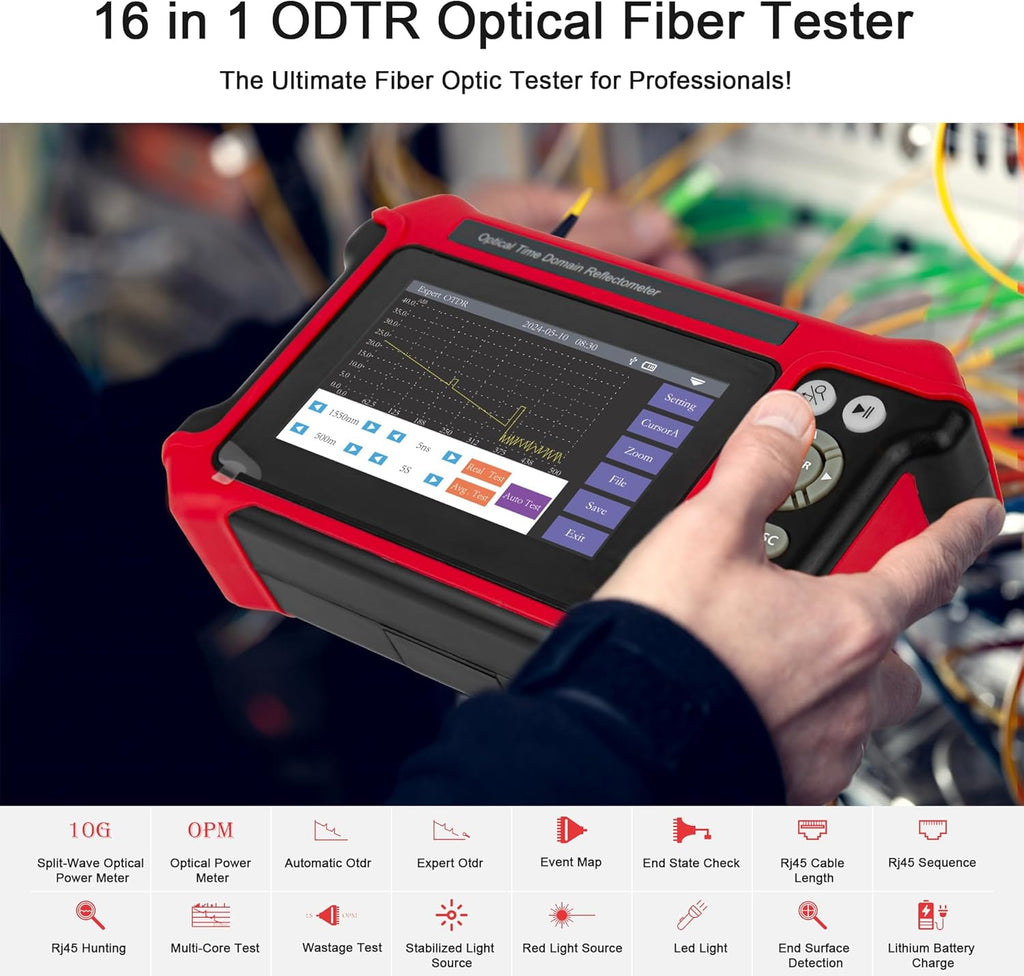

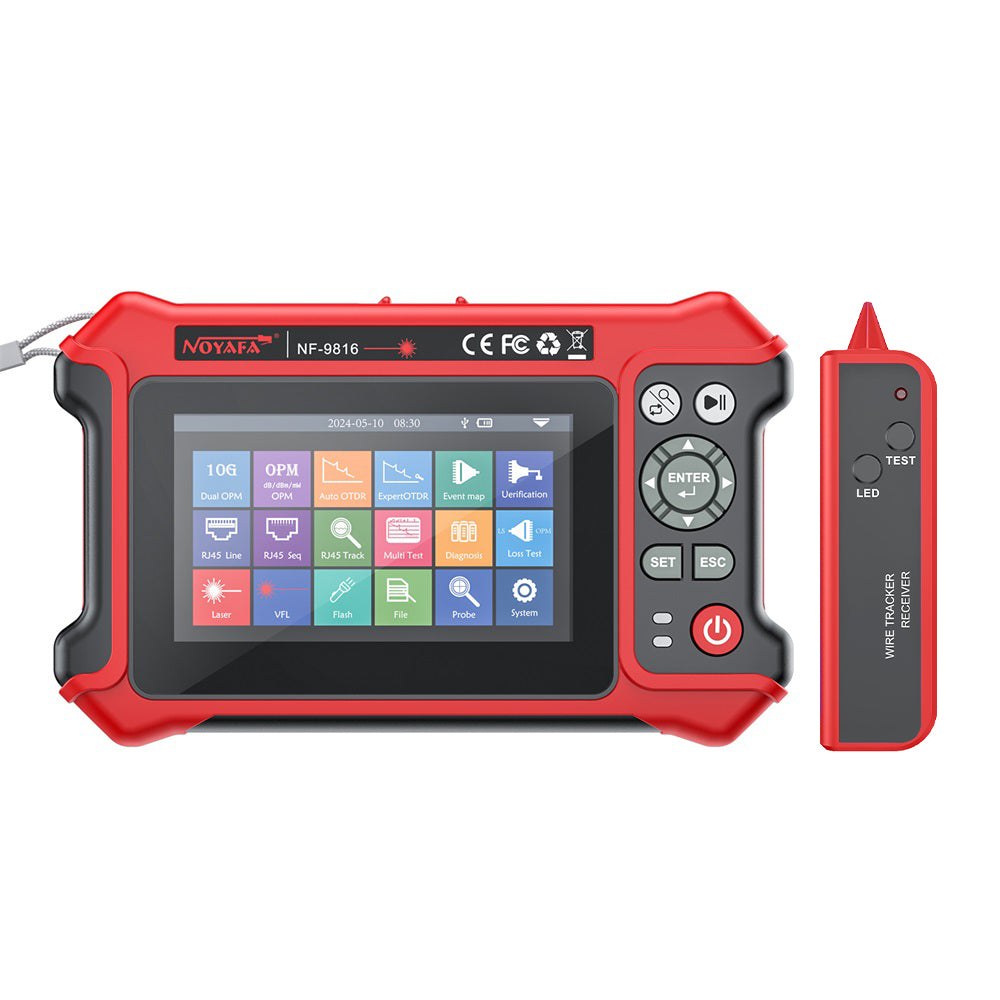

Noyafa NF-9816 Multi-Function OTDR Pro

Features & Benefits:

• Dual-Wavelength OTDR.
  Supports 1310nm and 1550nm test wavelengths, making it suitable for various types of single-mode fibers. With a high dynamic range (26 dB / 28 dB), it can perform long-distance fiber fault detection and loss measurement up to 80 km.

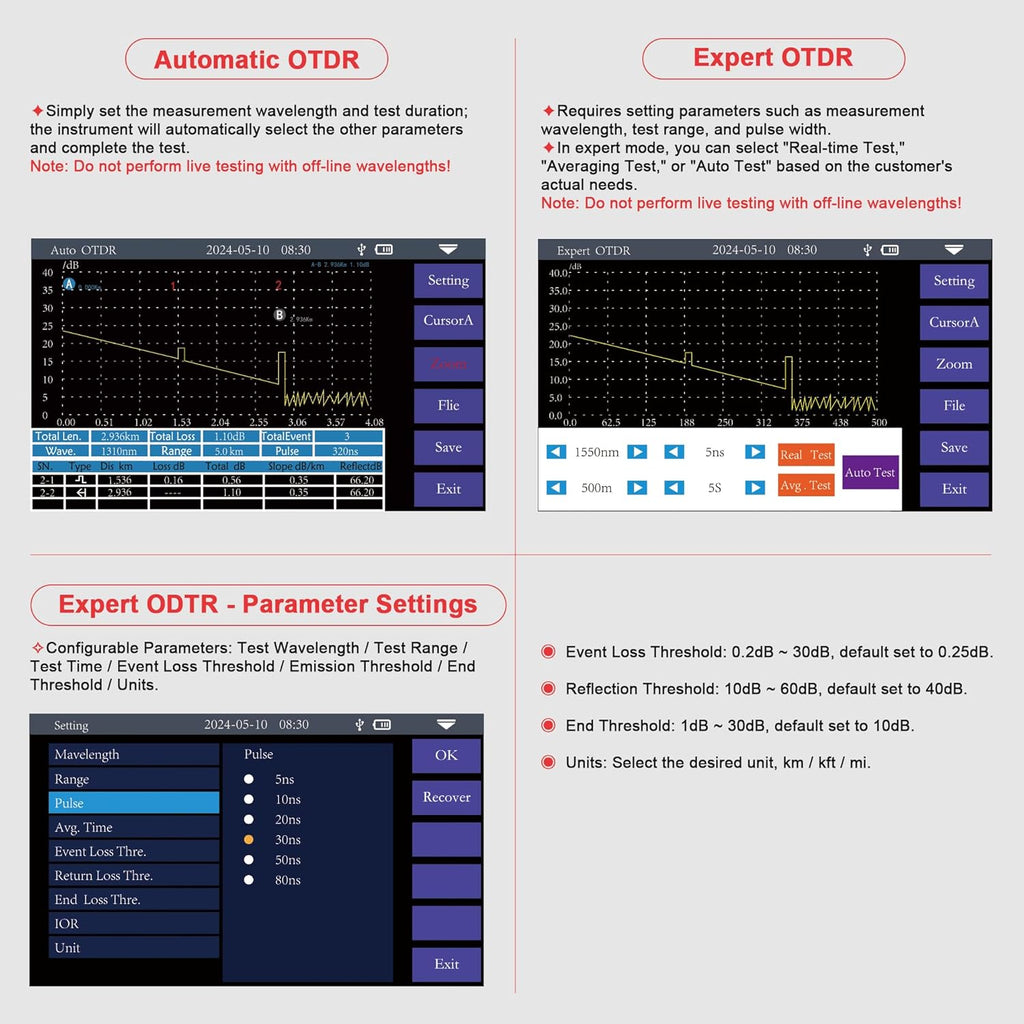

• Automatic + Expert Modes.

  • Automatic OTDR Mode: One-click testing for fast acceptance and quick verification.
  • Expert OTDR Mode: Allows manual settings for wavelength, pulse width, test distance, and more - ideal for advanced users and engineers.

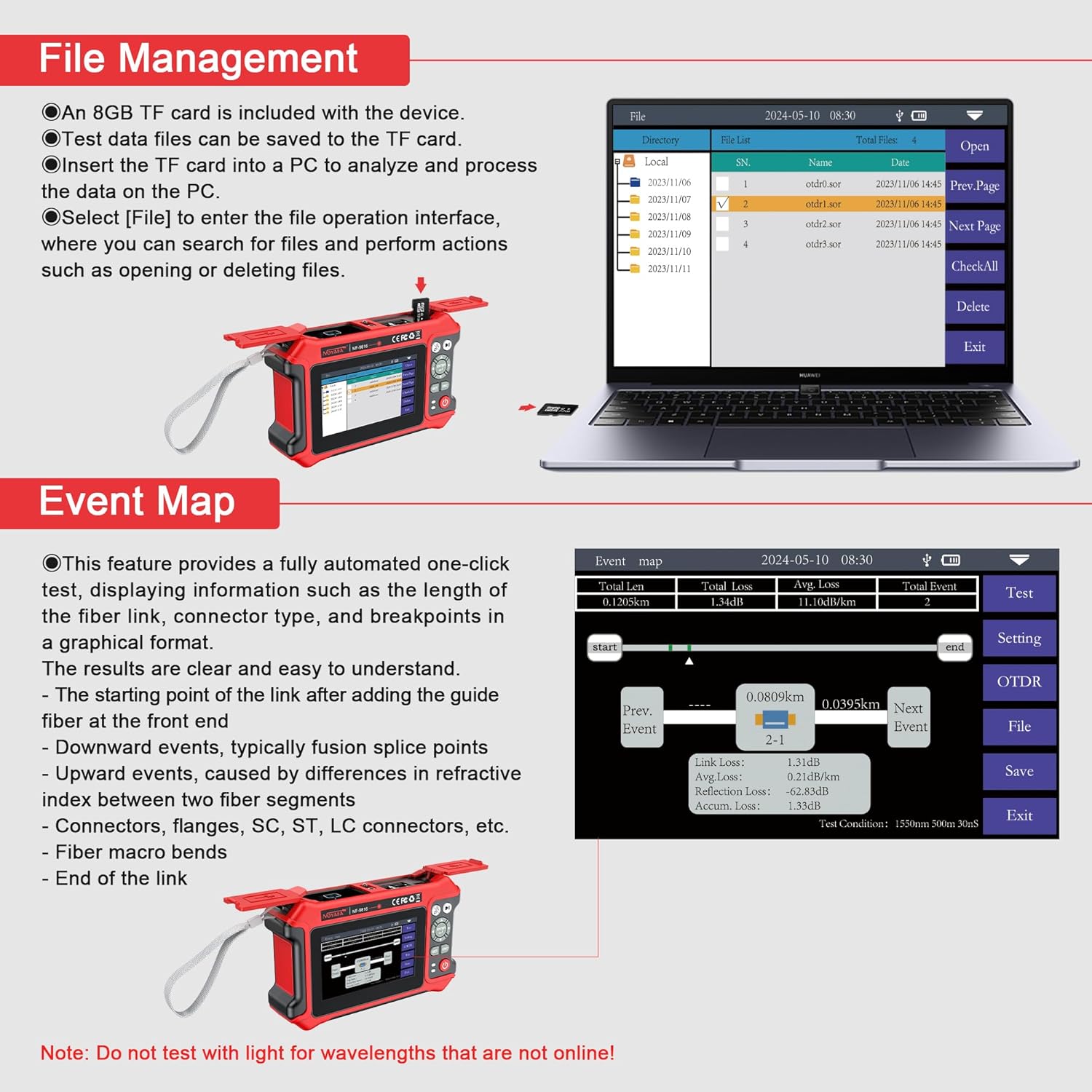

• Smart Event Map.
  Automatically analyzes reflection points (connectors, splicing points) and loss events, giving you a clear, visual overview of all fiber “events.”
  Includes End-State Check, which determines whether the fiber end (such as an ONU port) is properly connected.

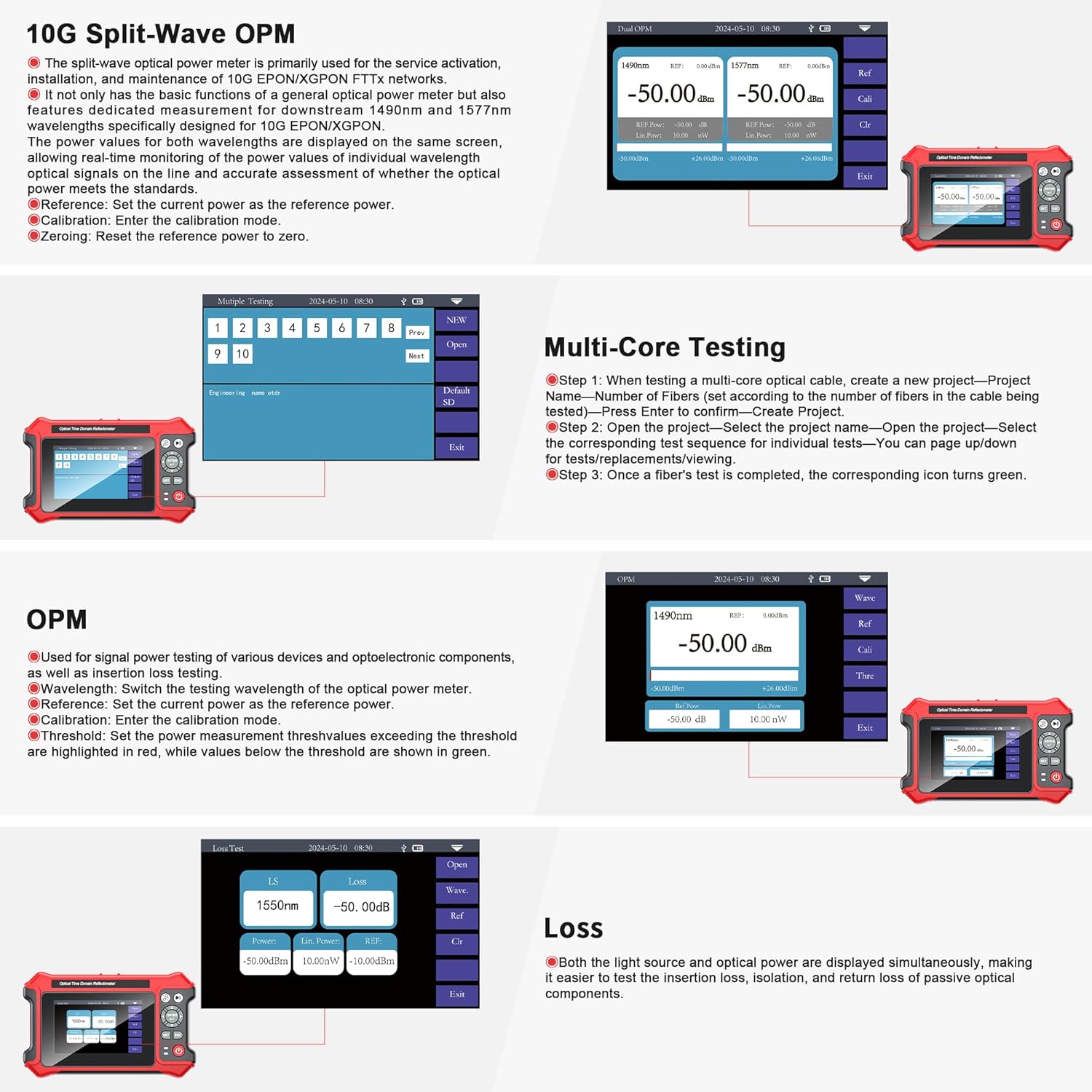

• Optical Power Meter (OPM) / 10G Split-Wave.
  Built-in 10G optical power meter with a wide measurement range (–50dBm to +26dBm), supporting multi-wavelength (including 1490nm) measurement.
  Stable accuracy, ideal for PON network debugging and maintenance.

• Stable Light Source.
  Built-in stable light source, suitable for link laser testing to ensure the consistency and accuracy of loss measurements.

• Visual Fault Locator (VFL).
  Red light (650nm) laser VFL with a maximum output of approximately 10 mW, capable of clearly identifying breakpoints, bends, and leakage points.
  Supports multiple operating modes (CW / flashing) to enhance fault location flexibility.

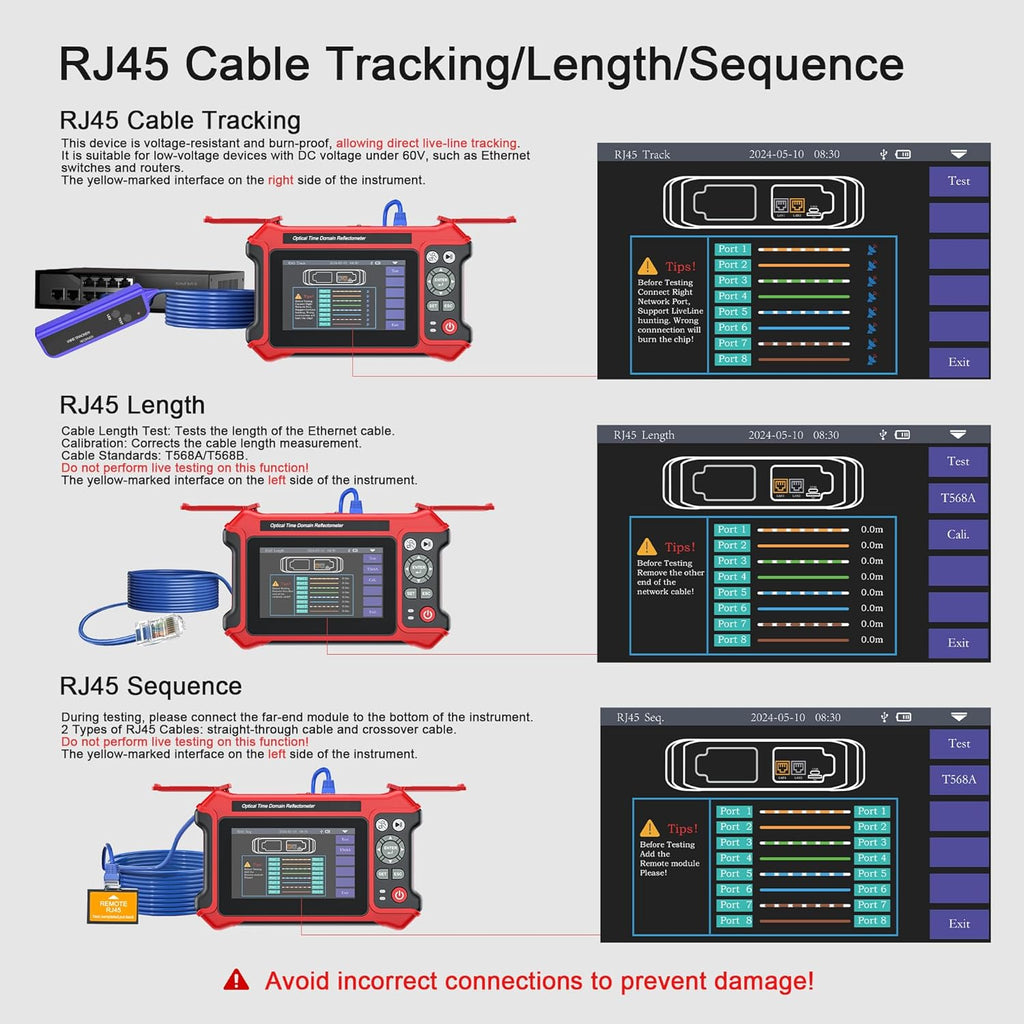

• Ethernet Cable Tracing and Testing.
  Supports RJ45 network cable testing: length measurement (1–600m), wire sequence test (Sequence), and cable tracing (Hunt).
  Ideal for LAN deployment / structured cabling projects.

• Multi-Core Testing.
  Supports multi-core fiber testing, making it highly suitable for high-density fiber optic cabling environments.
  Enables simultaneous inspection of multiple fibers' status, enhancing efficiency.

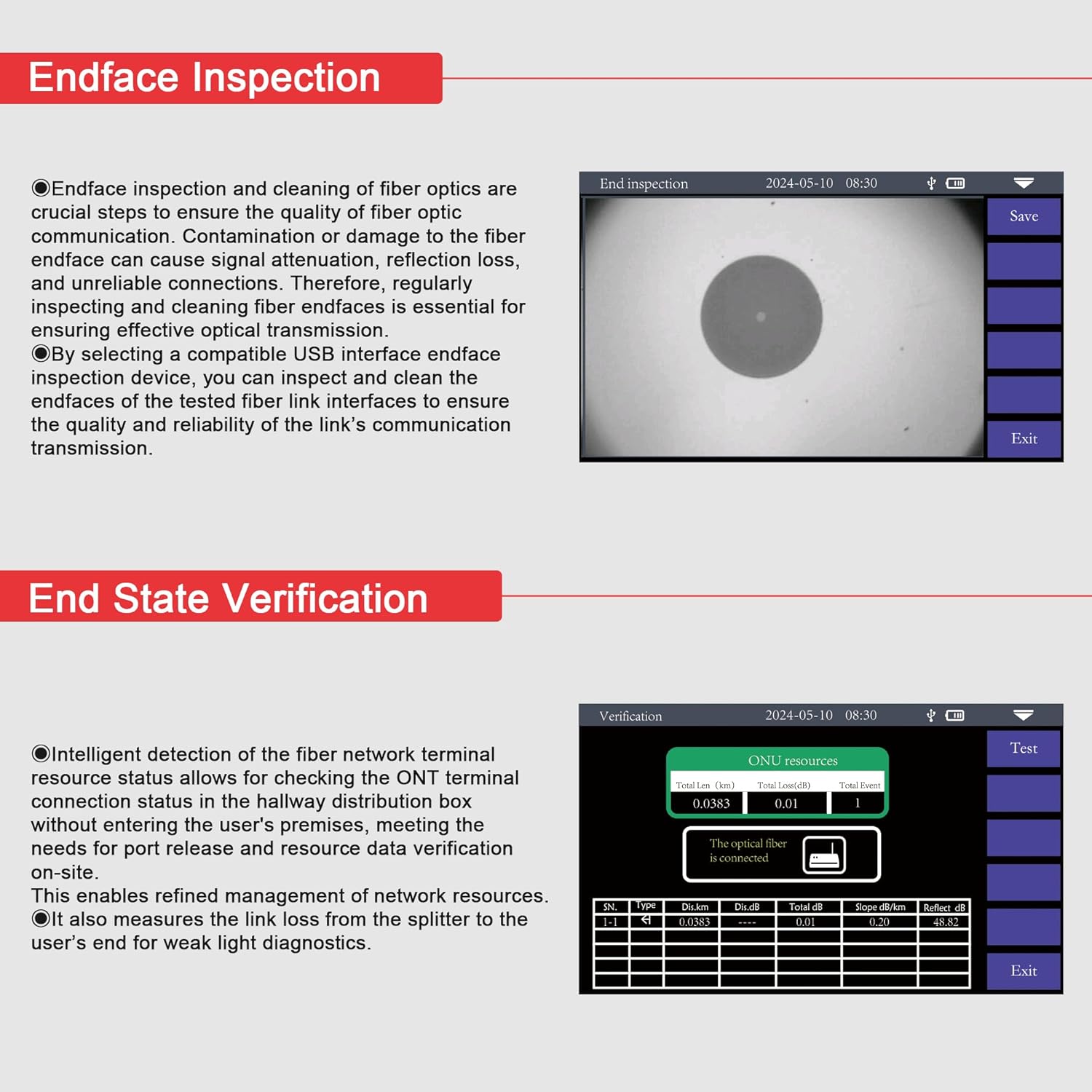

• End-Face Inspection.
  Examines the fiber optic end-face to determine if it is clean or damaged, preventing connection failures caused by end-face issues.
• Battery and Portability.
  Equipped with a 4700 mAh lithium battery, supporting extended field use.
  Features a Type-C charging port with intelligent overcharge/overcurrent protection, making it suitable for remote or outdoor work.

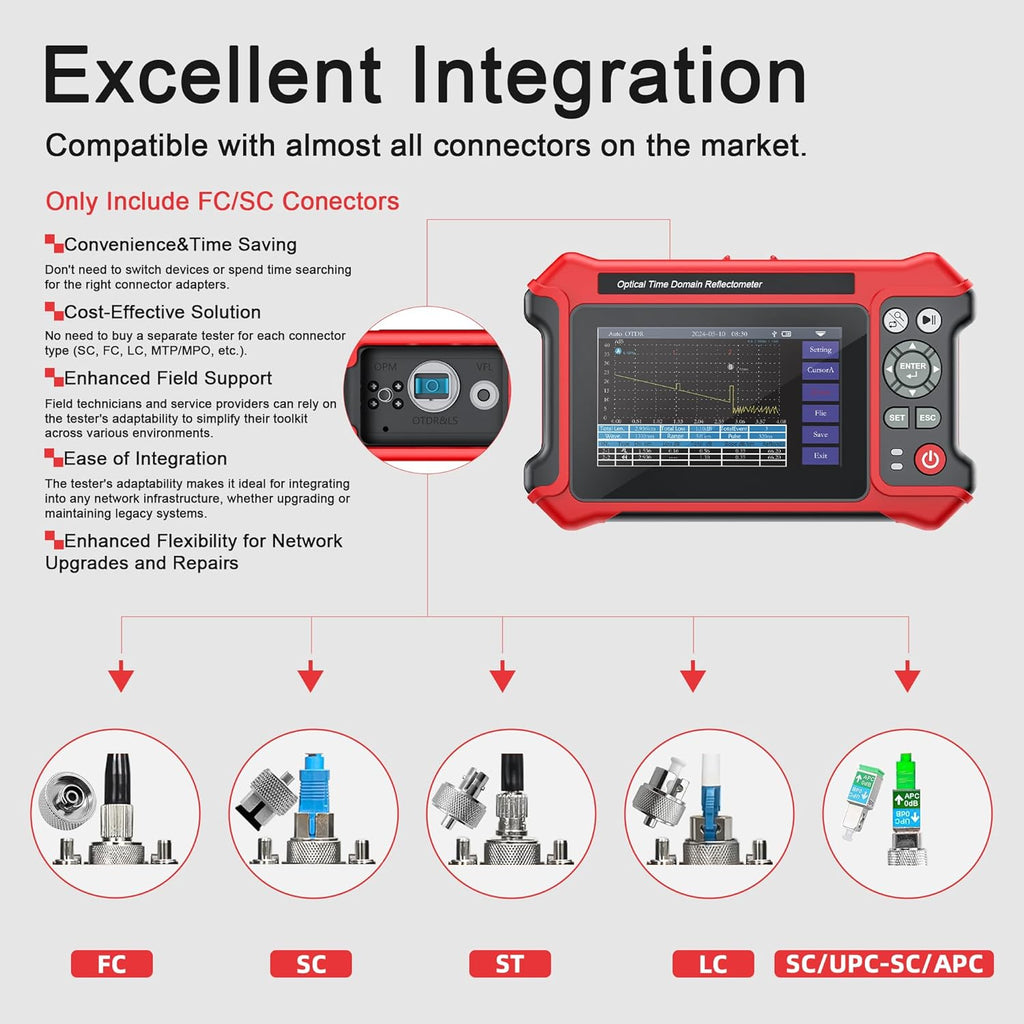

• Powerful Connection Compatibility.
  Supports FC/PC interfaces and allows for interchangeable SC/ST connectors (including APC type), compatible with various fiber optic network environments.
  Suitable for different carrier networks, PON, metropolitan area networks, and more.

• User-Friendly Interface.
  Features a 3.5-inch color LCD screen with dual operation modes (touch and buttons), ensuring flexible and easy operation.
  Supports functions like gesture-based screen zoom and screenshot capture, facilitating on-site viewing and reporting.
• Robust Data Saving and Formats.
  Supports saving test results using TF cards/external storage.
  Utilizes standard SOR file format, compatible with professional OTDR report analysis tools.
• Safety and Reliability.
  Laser safety class II-l, suitable for daily testing environments.
  High-isolation filtering technology: Protects sensitive optical components during testing and reduces potential damage to network equipment (e.g., PON terminals).
