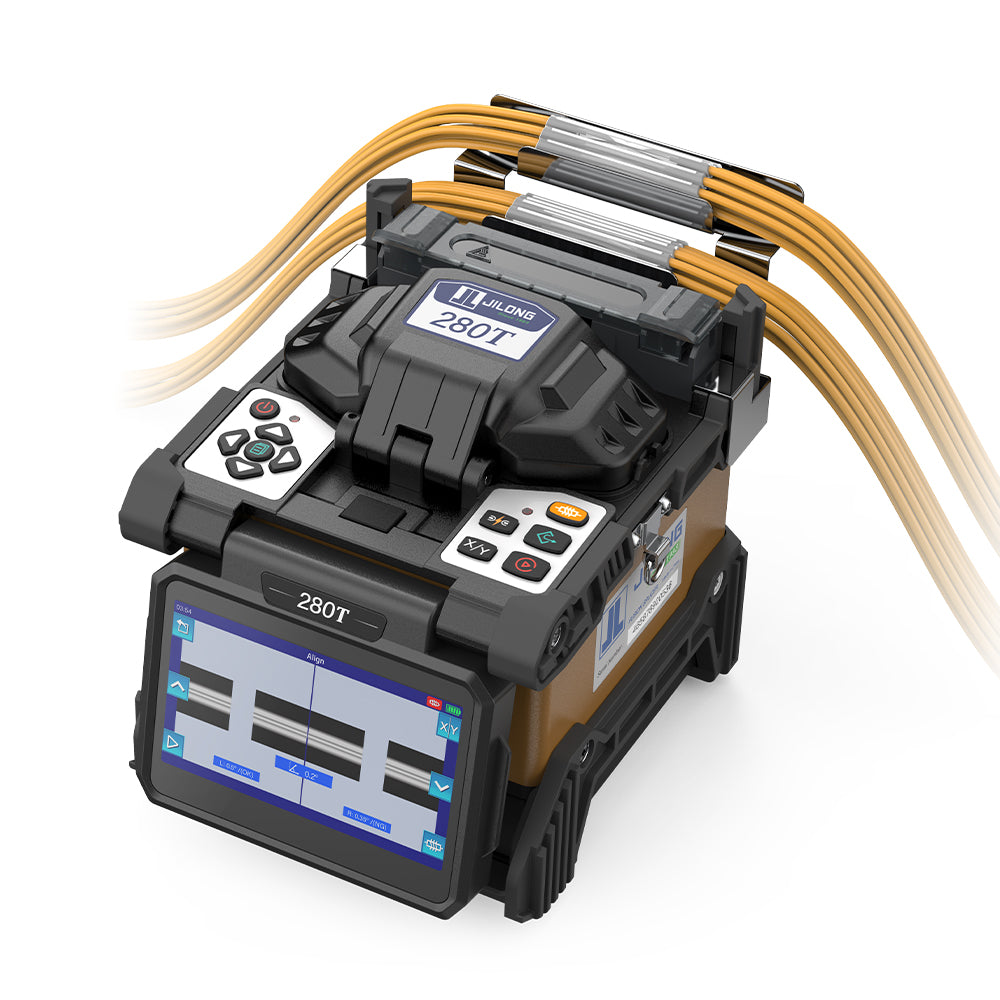

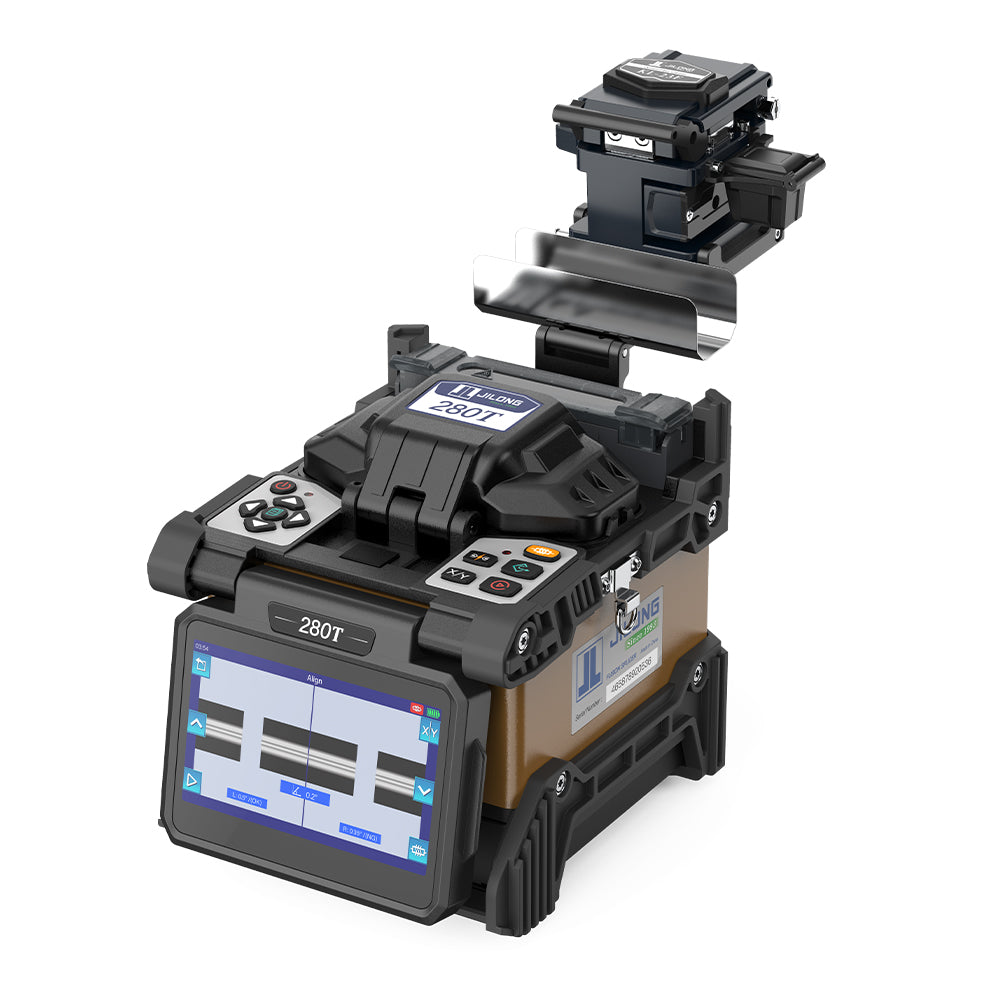

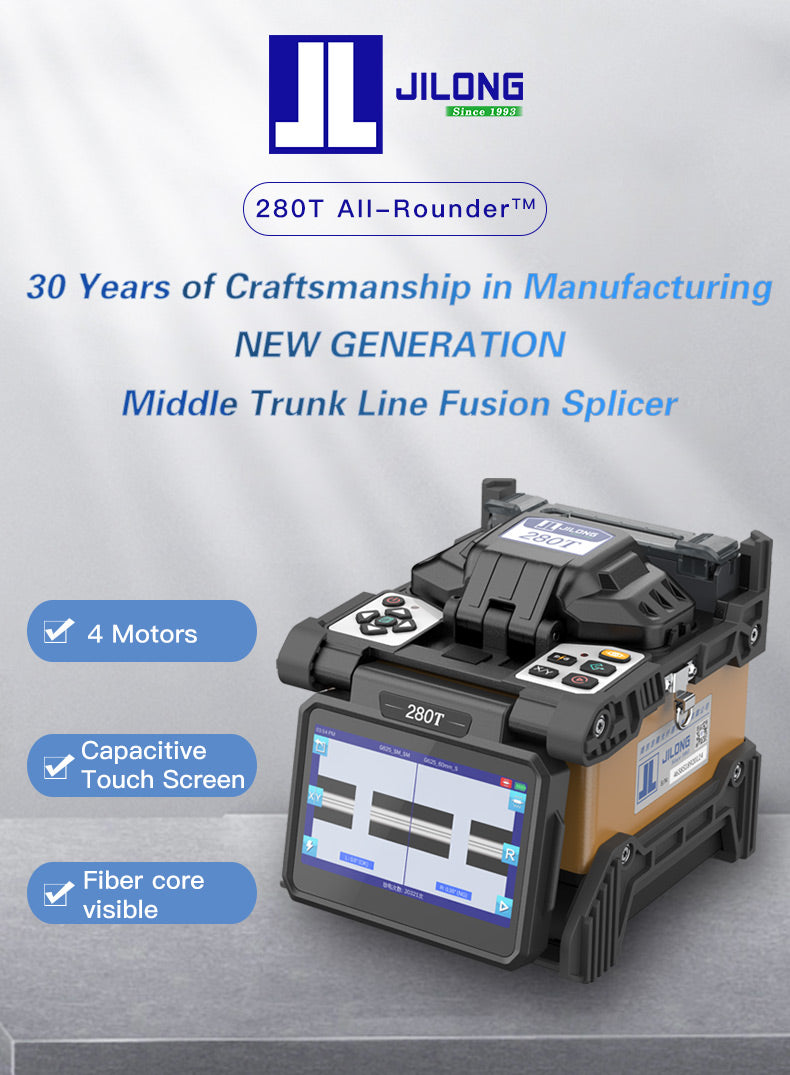

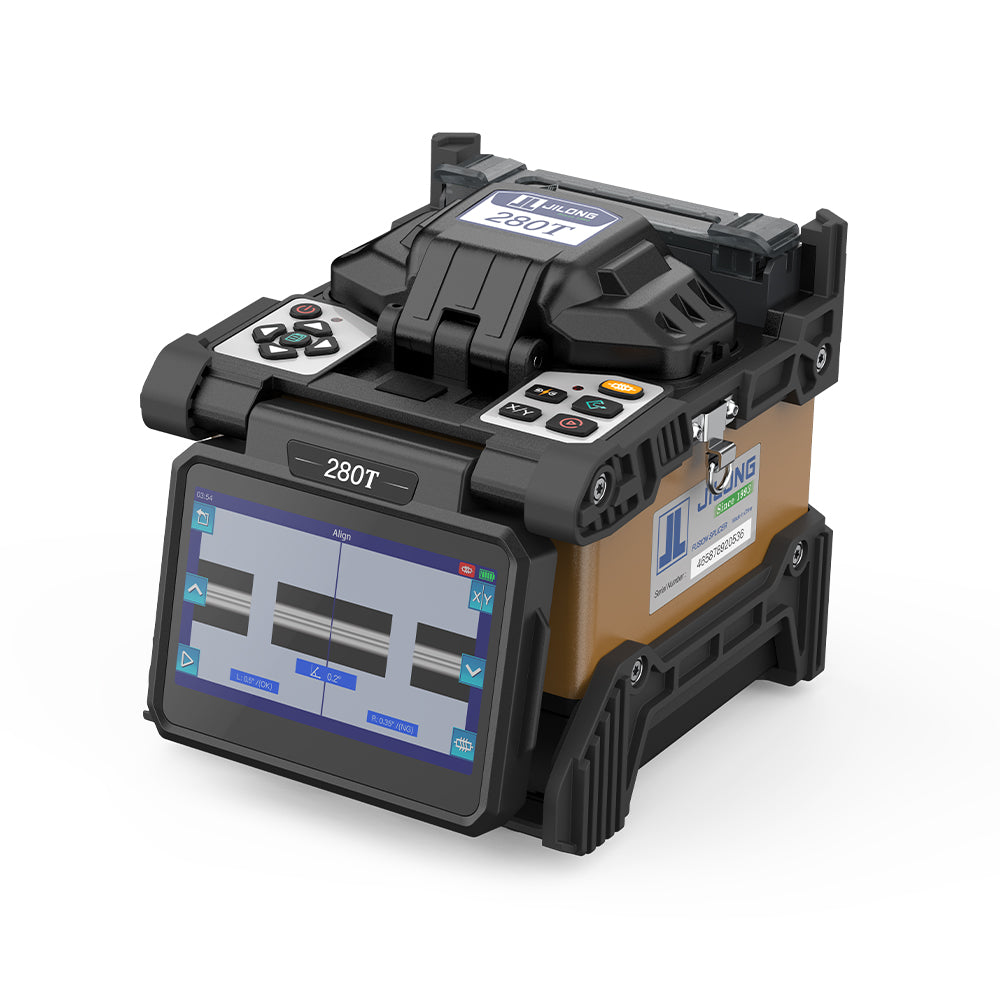

280T All-Rounder Middle Trunk Line Fusion Splicer

Name: 280T All-Rounder Middle Trunk Line Fusion Splicer
Brand: JILONG
SKU: 280T
Price: 817.30 USD
Availability: InStock

$817.30

· 4 Motor mainline fusion splicer

· Fiber core alignment，Fiber core visible

· Auto splice & auto heat function

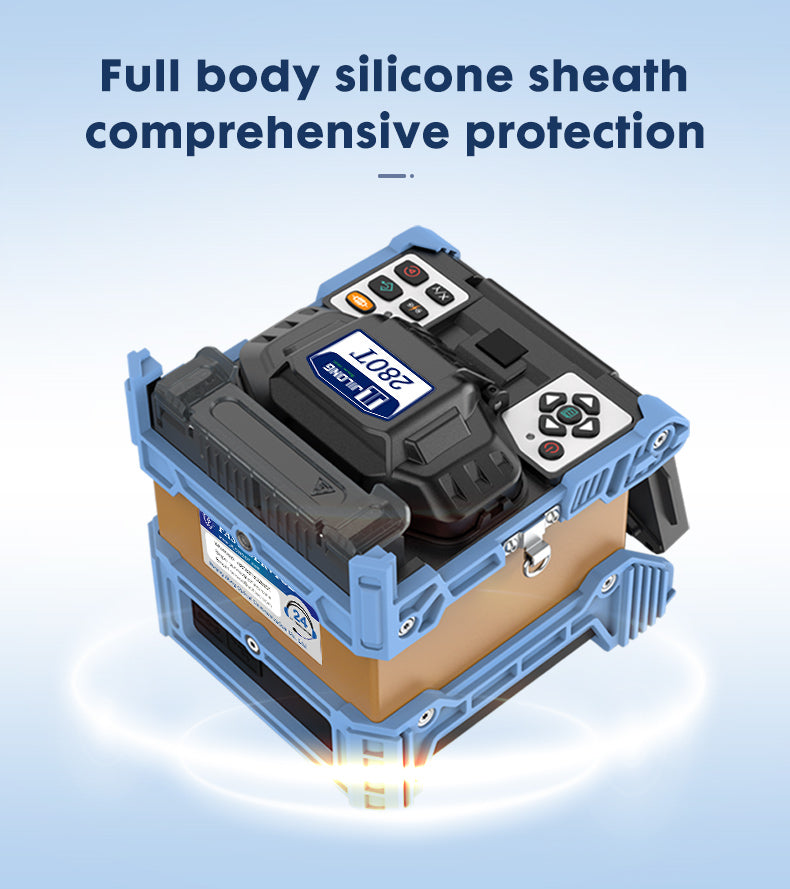

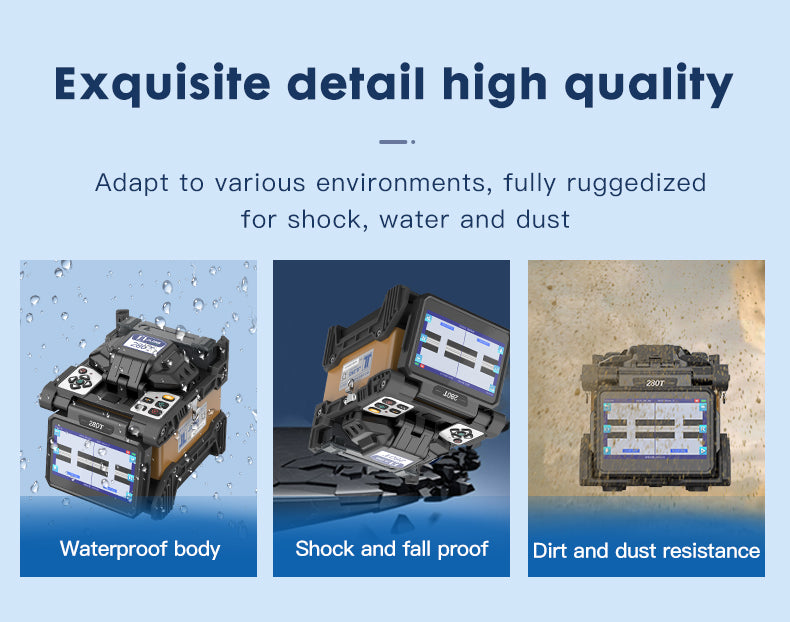

· Fully ruggedized for shock, dust, and moisture

· 3-Year extended warranty

· 4.3-Inch capacitive touch screen

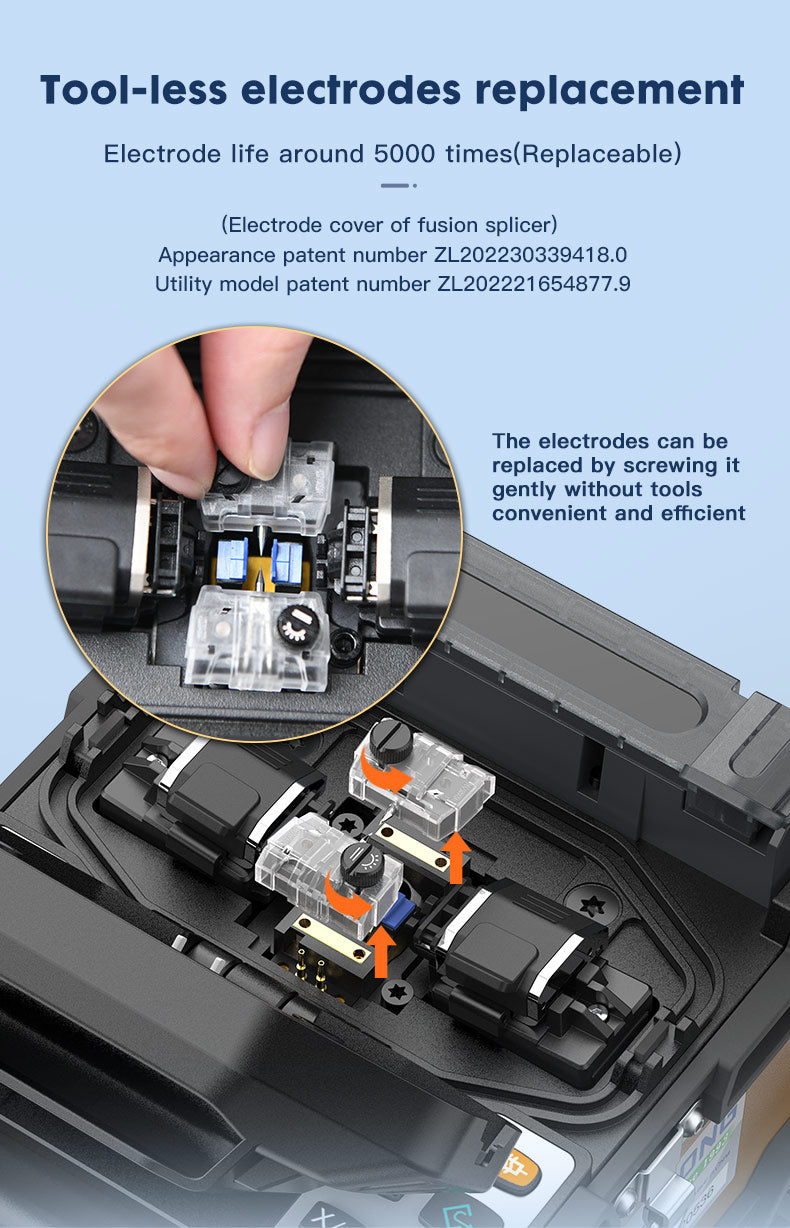

· Tool-less electrodes replacement

JILONG

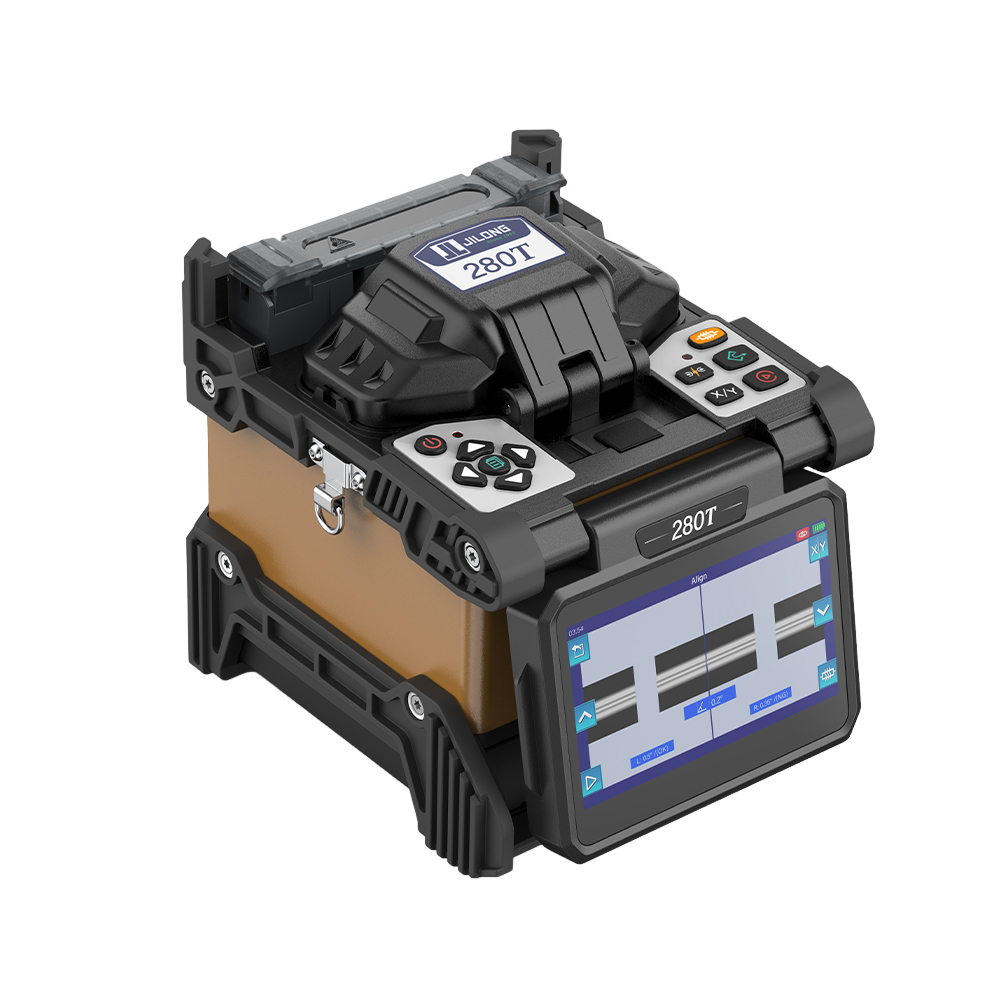

280T Trunk Line Fusion Splicer

DM_20260625114134_001.png__PID:11020203-e48d-4a03-a351-05c6322c018b

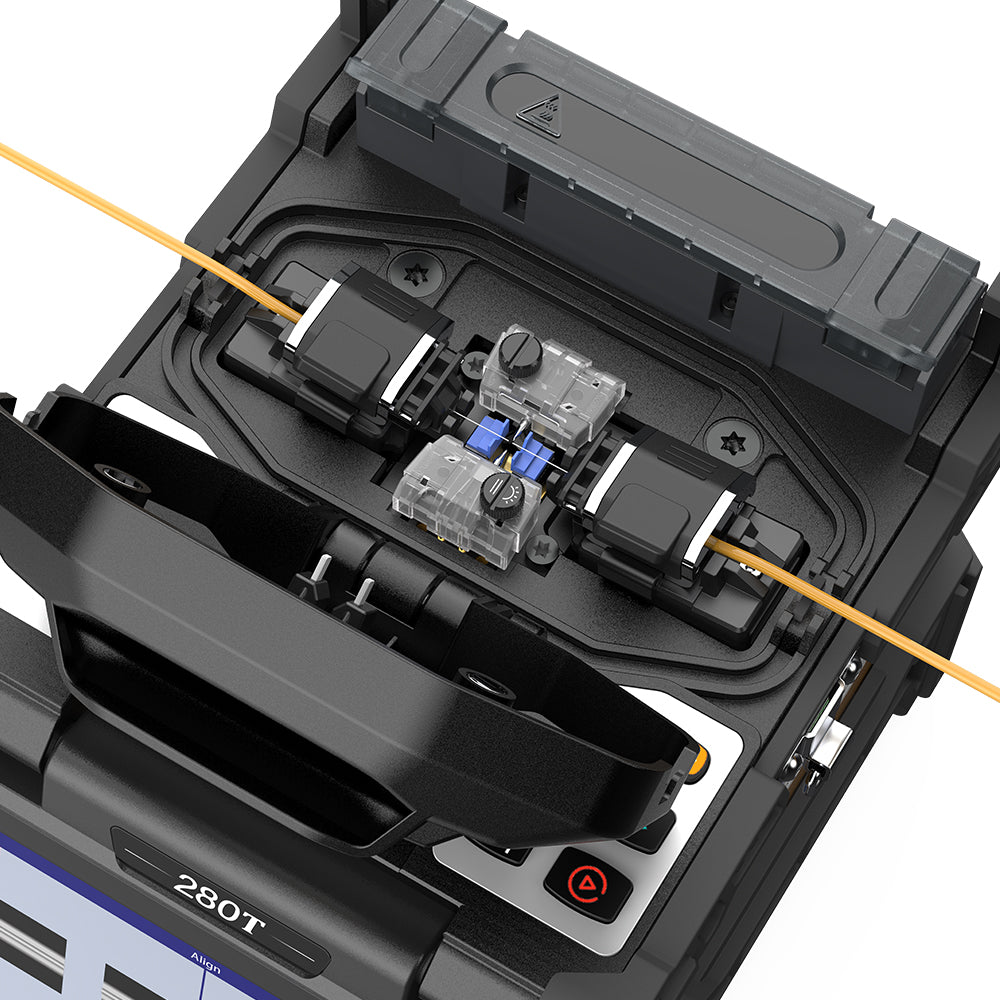

280T All-Rounder Middle Trunk Line Fusion Splicer

· 4 Motor mainline fusion splicer
· Fiber core alignment，Fiber core visible
· Auto splice & auto heat function
· Fully ruggedized for shock, dust, and moisture
· 3-Year extended warranty
· 4.3-Inch capacitive touch screen
· Tool-less electrodes replacement

280T All-Rounder Middle Trunk Line Fusion Splicer

Discover how the 280T can improve the efficiency of fused fiber

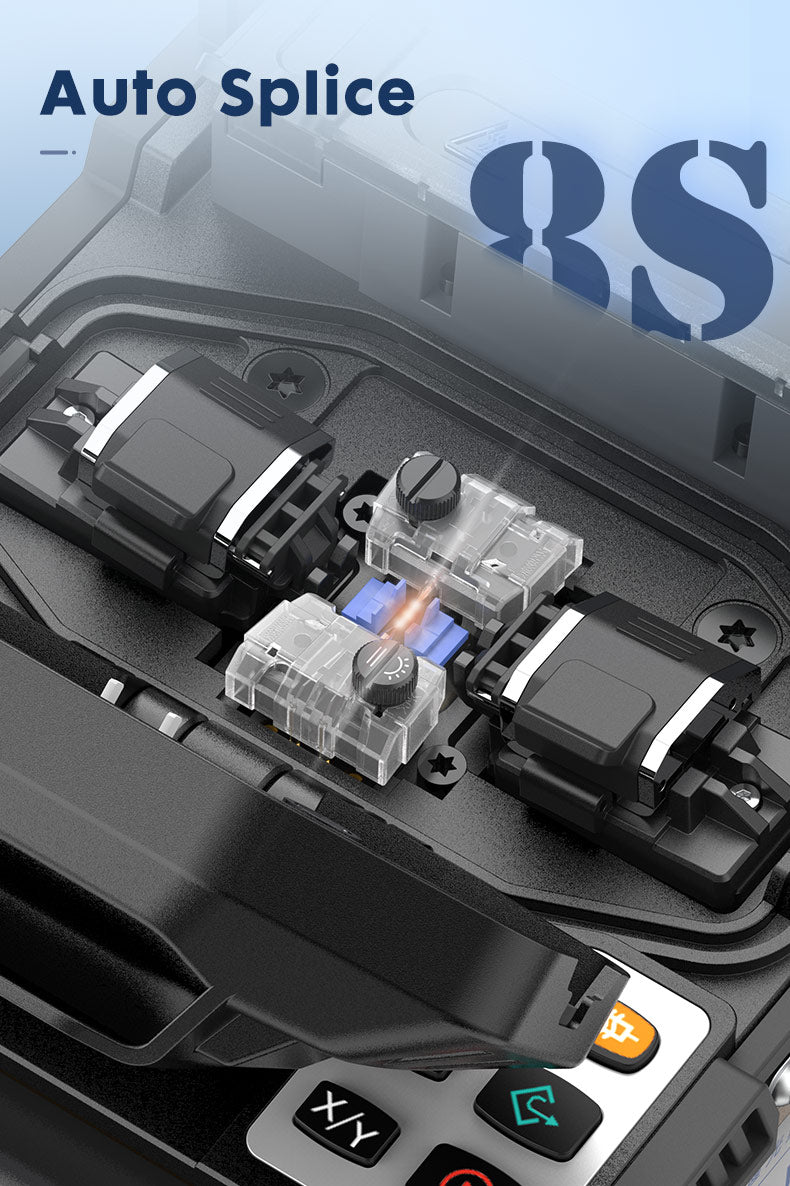

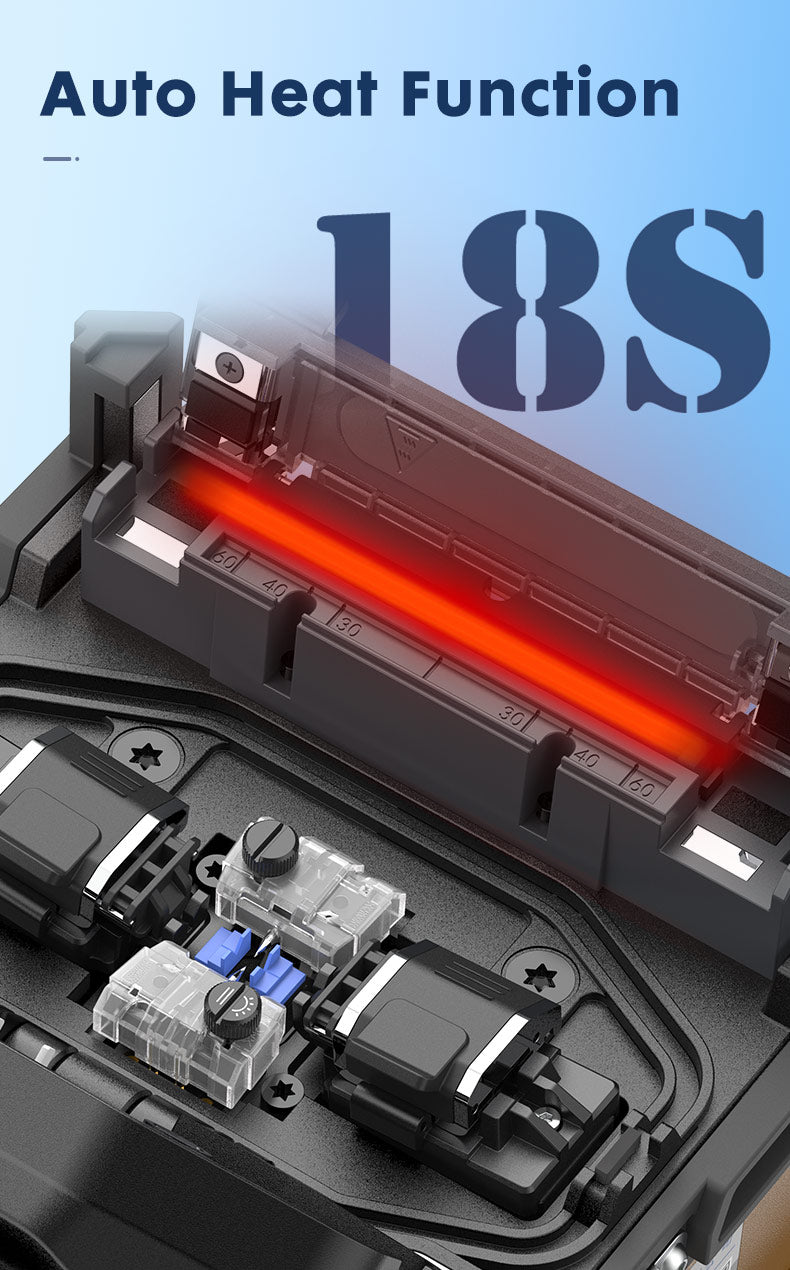

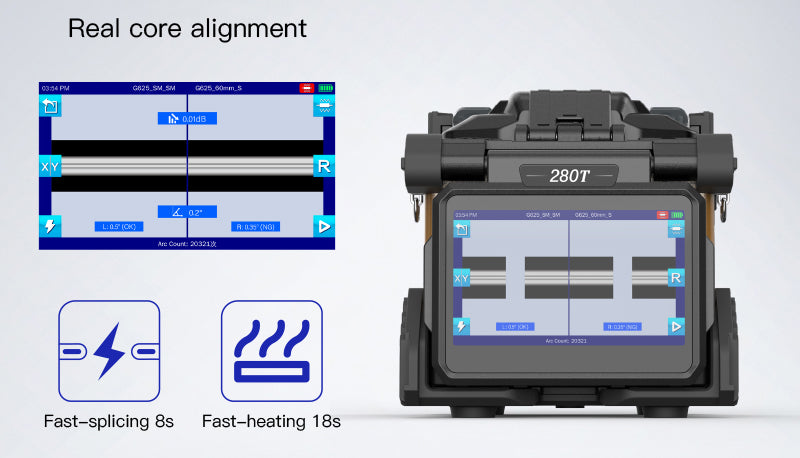

Auto splice & auto heat function

● Fast-splicing 8s
● Fast-heating 18s
● Fiber core visible

4-motor mainline fusion splicer

● 60KM metropolitan area network
● FTTx Fiber to the home
● Security monitoring
● Installation and maintenance construction

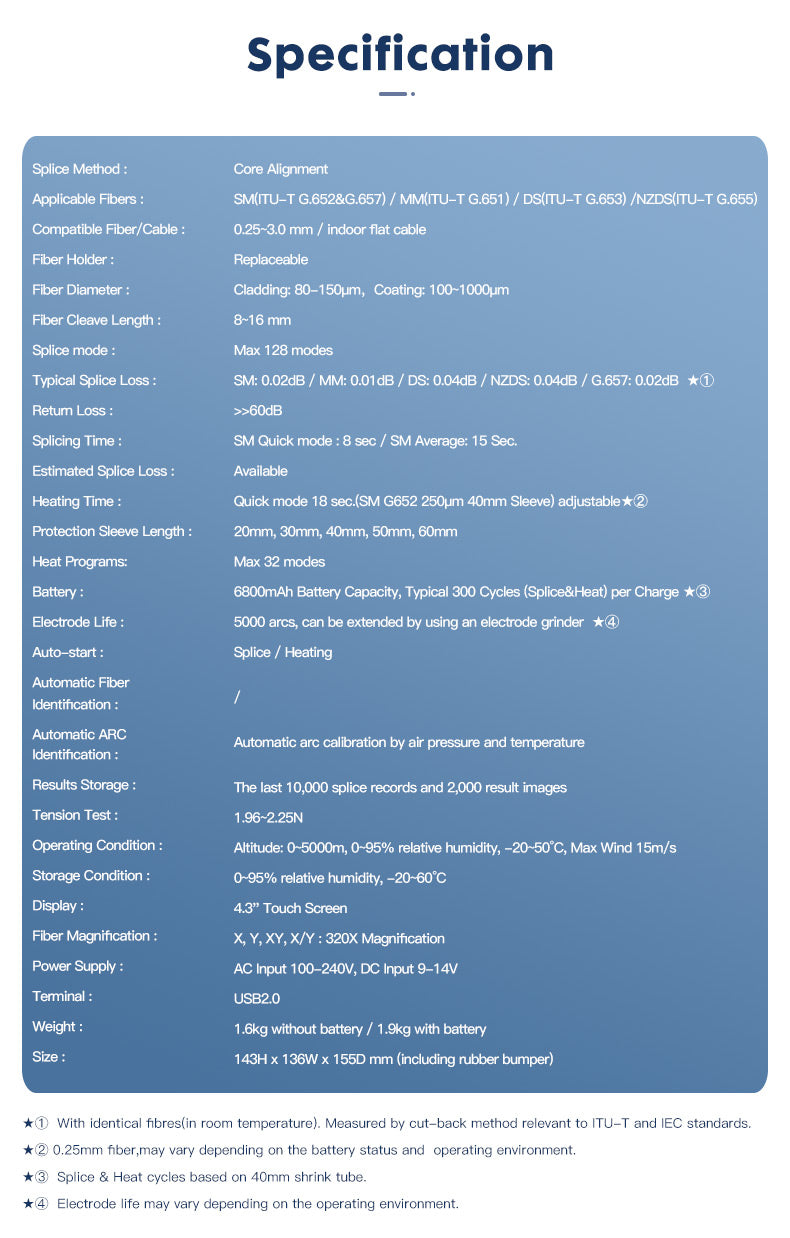

Product Specifications

Key specifications at a glance—defining quality and performance through data.

Alignment method	Core Alignment
Applicable fiber type	SM(ITU-T G.652&G.657) / MM(ITU-T G.651) / DS(ITU-T G.653) / NZDS(ITU-T G.655)
Compatible Fiber/Cable	0.25~3.0 mm / Rubber-insulated fiber cable

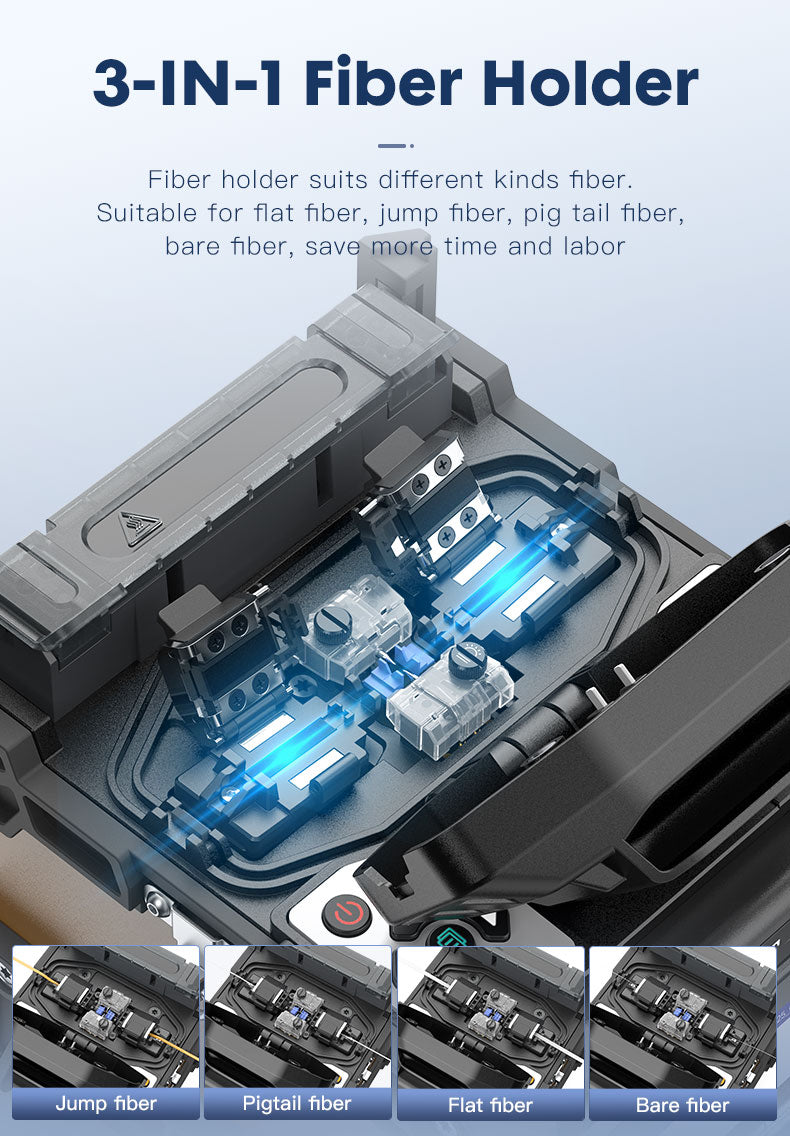

Fiber Holder	Replaceable universal fiber holder
Fiber Diameter	Cladding: 80-150μm，Coating: 100~1000μm
Fiber Cleave Length	8~16 mm
Typical Splice Loss	SM: 0.02dB / MM: 0.01dB / DS: 0.04dB / NZDS: 0.04dB / G.657: 0.02dB ★①
Return Loss	>>60dB
Splicing Time	SM Quick mode: 8 sec/ SM Average: 15 sec
Estimated Splice Loss :	Available
Heating Time	Quick mode 18 sec.(SM G652 250µm 40mm Sleeve) adjustable★②
Protection Sleeve Length	20mm, 30mm, 40mm, 50mm, 60mm
Heat Programs	Max 32 modes

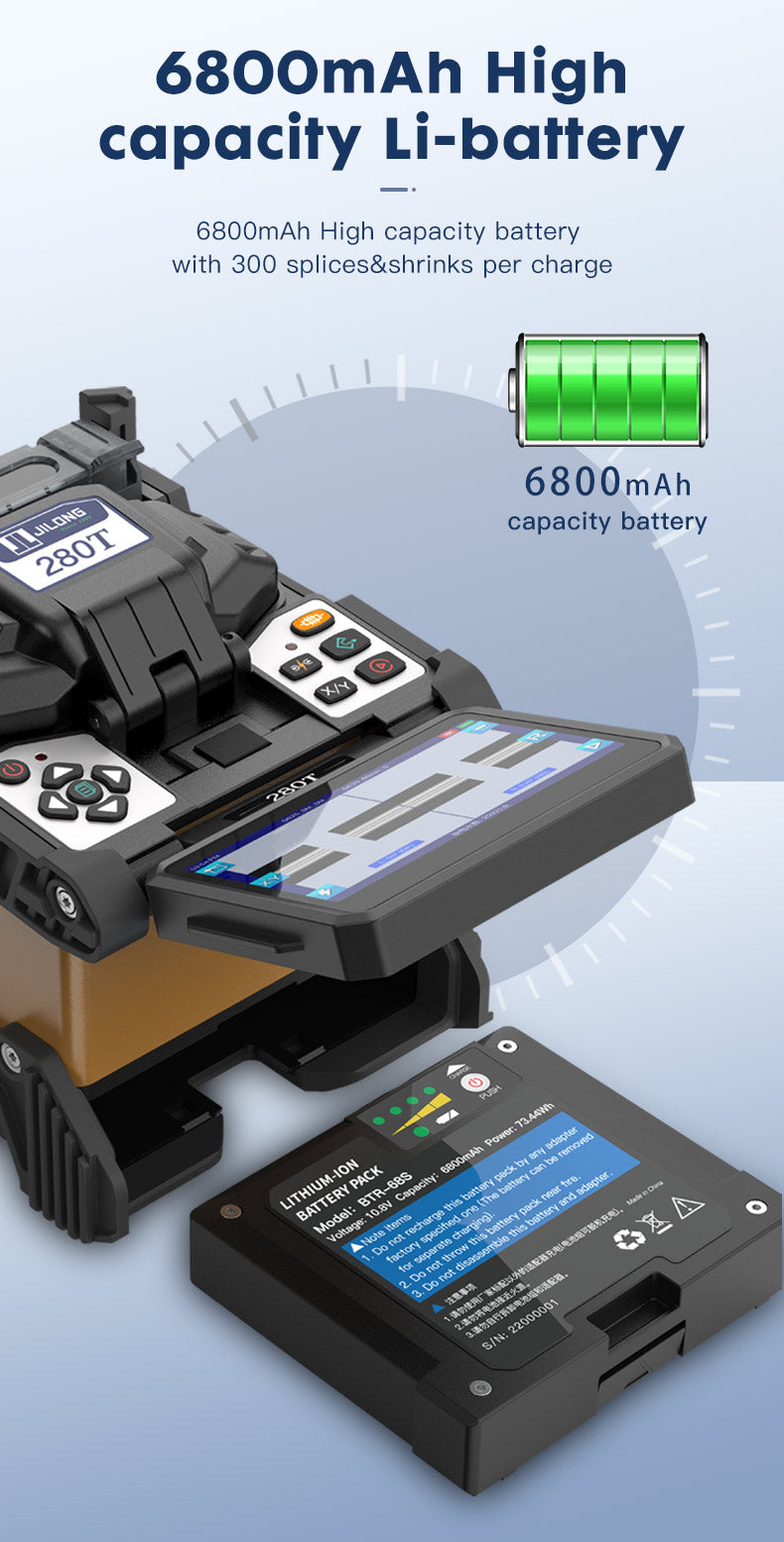

Battery	6800mAh Battery Capacity, Typical 300 Cycles (Splice&Heat) per Charge ★③
Electrode Life	5000 arcs, can be extended by using an electrode grinder ★④
Auto-start	Splice / Heating
Automatic Fiber Identification	/
Automatic ARC Identification	Automatic arc calibration by air pressure and temperature
Results Storage	The last 10,000 splice records and 2,000 result images
Tension Test	1.96~2.25N
Operating Condition	Altitude: 0~5000m, 0~95% relative humidity, -20~50°C, Max Wind 15m/s
Storage Condition	0~95% relative humidity, -20~60°C

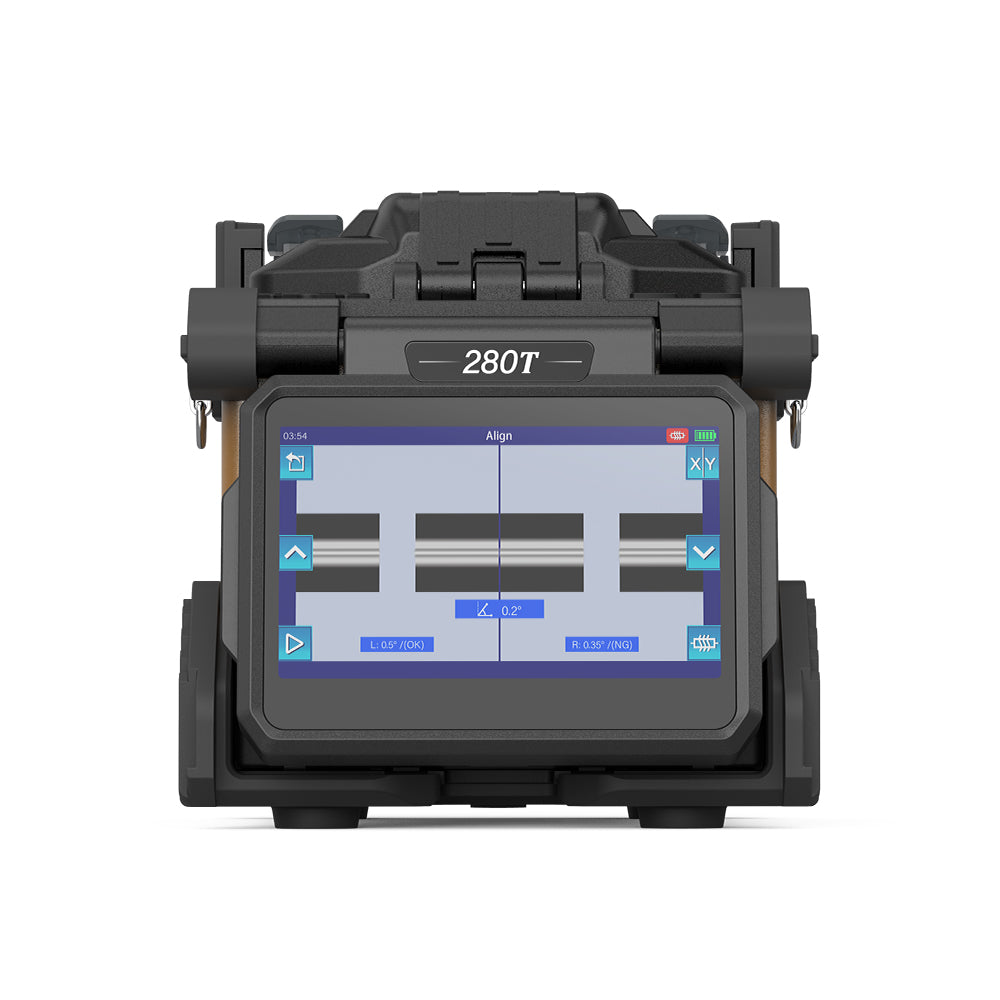

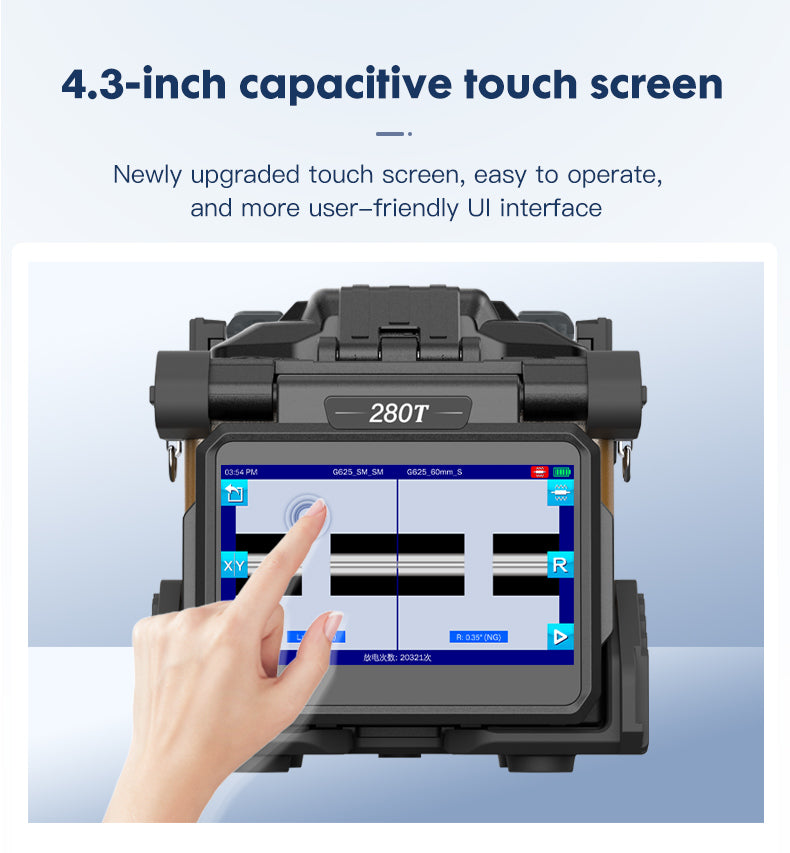

Display	4.3-Inch capacitive touch screen
Fiber Magnification	X, Y, XY, X/Y : 320X Magnification
Power Supply	AC Input 100-240V, DC Input 9-14V
Terminal	USB2.0
Weight	1.6kg without battery / 1.9kg with battery
Size	143H x 136W x 155D mm (including rubber bumper)

★① With identical fibres(in room temperature). Measured by cut-back method relevant to ITU-T and IEC standards.
★② 0.25mm fiber, may vary depending on the battery status and operating environment.
★③ Splice & Heat cycles based on 40mm shrink tube.
★④ Electrode life may vary depending on the operating environment.

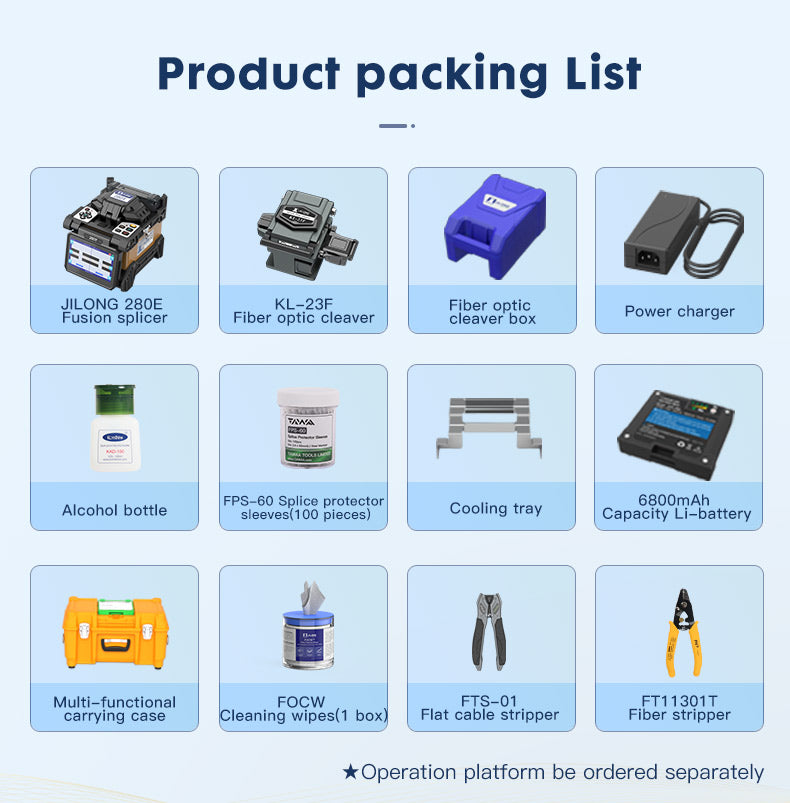

Packing List

Ensuring every core component and accessory arrives in perfect condition.

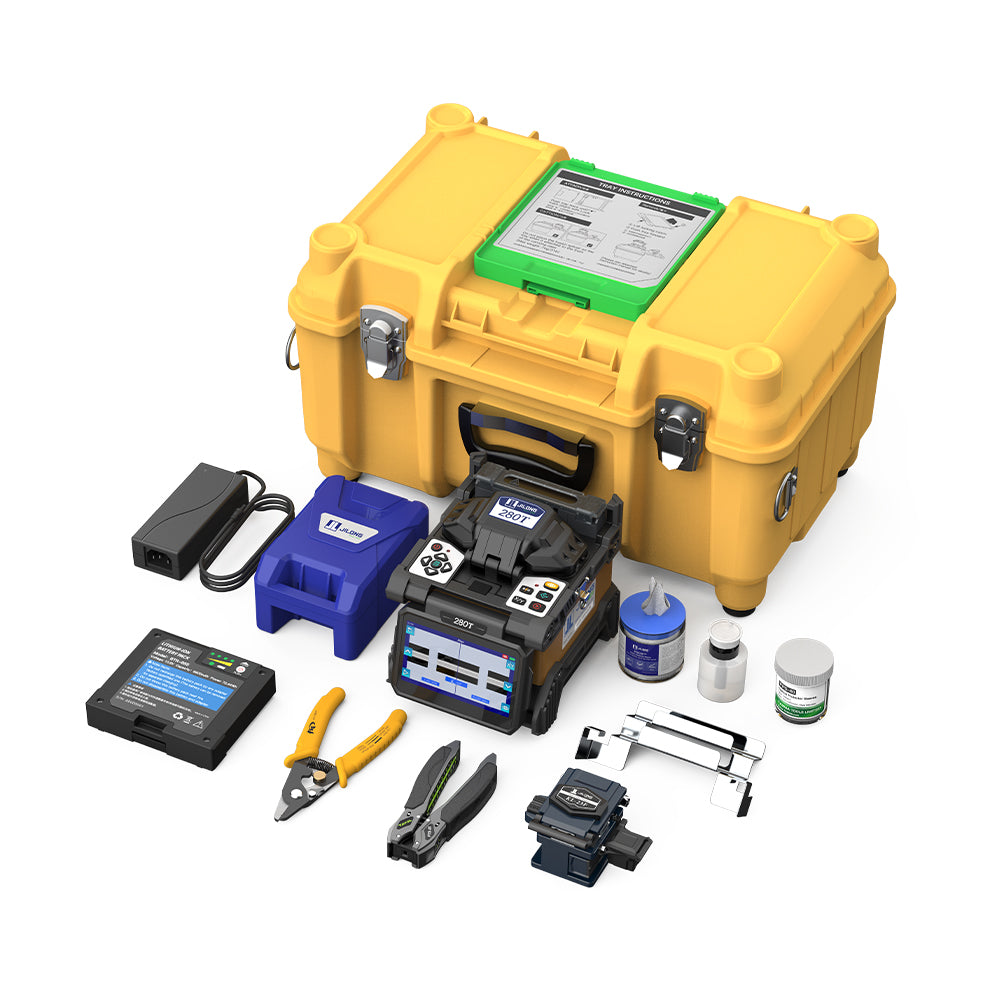

280T Fusion Splicer Packing List

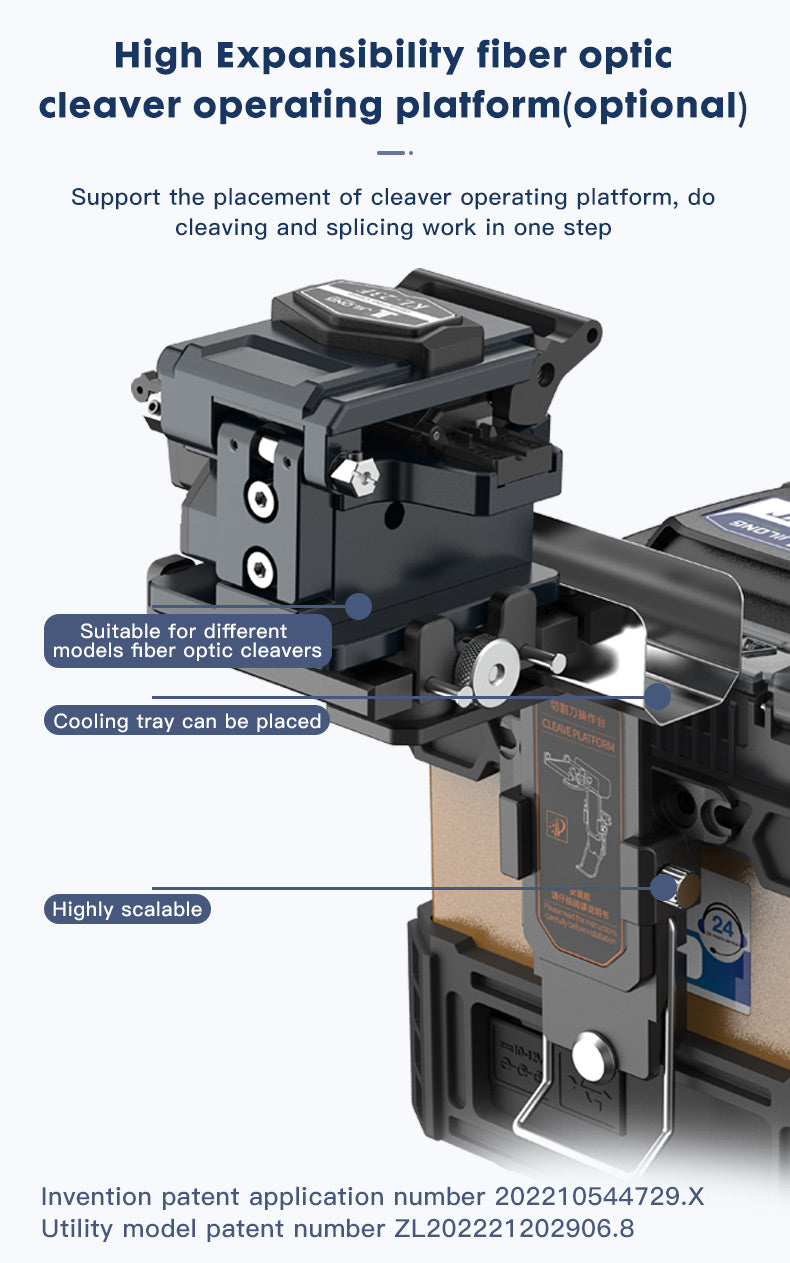

High Precision Fiber Cleaver KL-23F * 1
Work Table Carry Case * 1
Fiber Cleaning Wipes (FOCW) * 1
Splicing protector sleeves FPS-40 * 1
Alcohol bottle * 1
Fiber Stripper * 1
Flat Cable Stripper FTS-01 * 1
280T Fusion splicer * 1
Power charger * 1

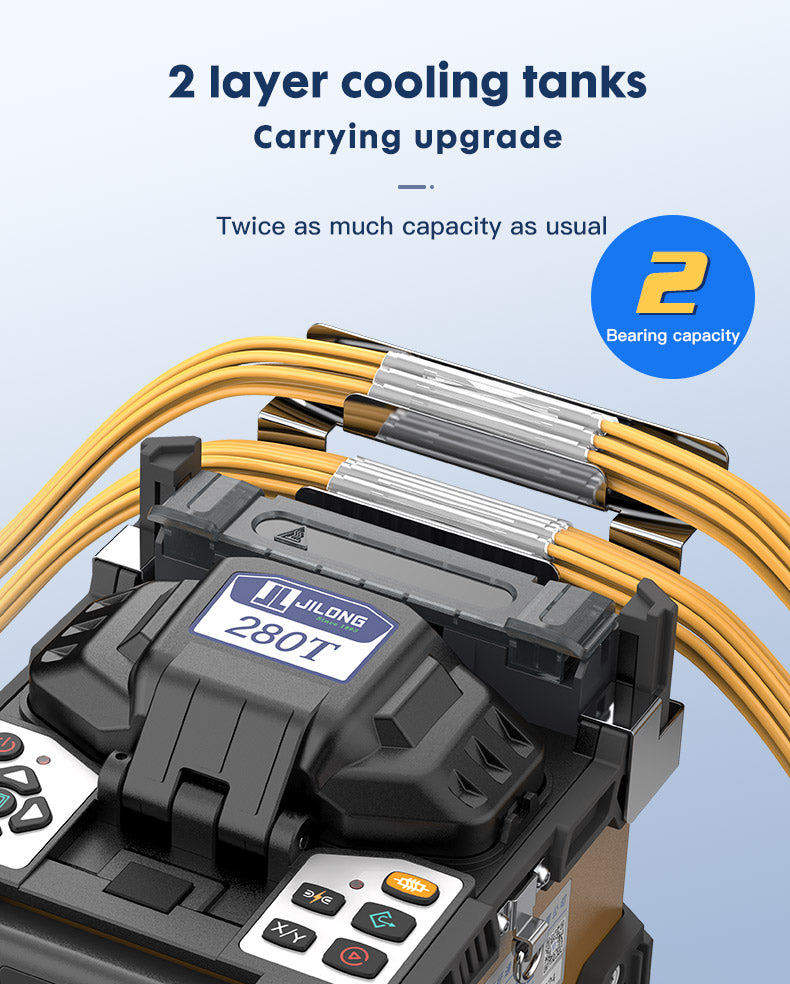

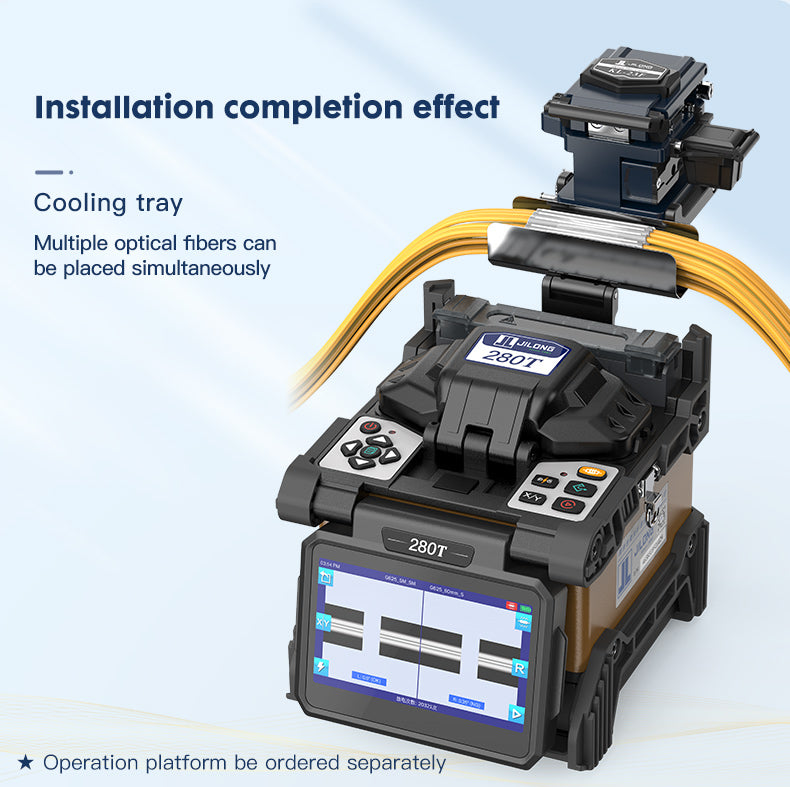

Cooling Tray * 1

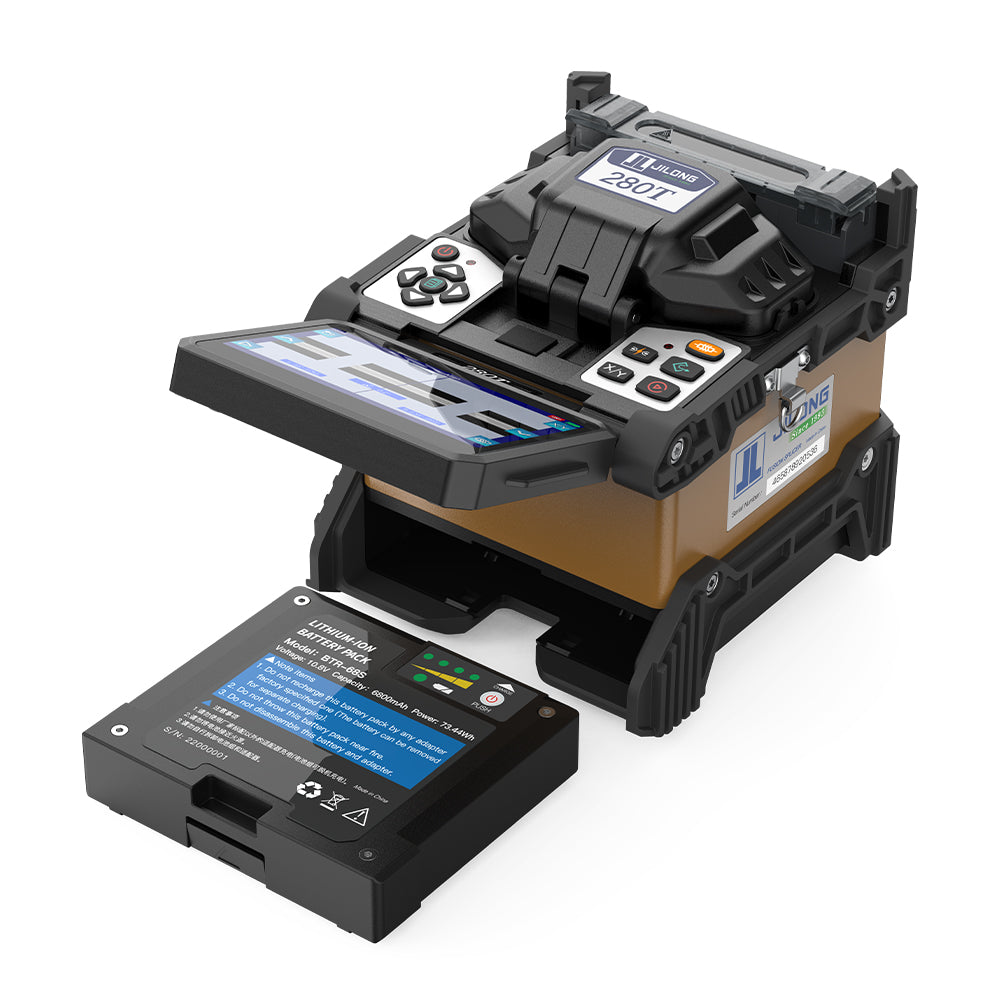

Battery Pack 6800mAh BTR-68S * 1

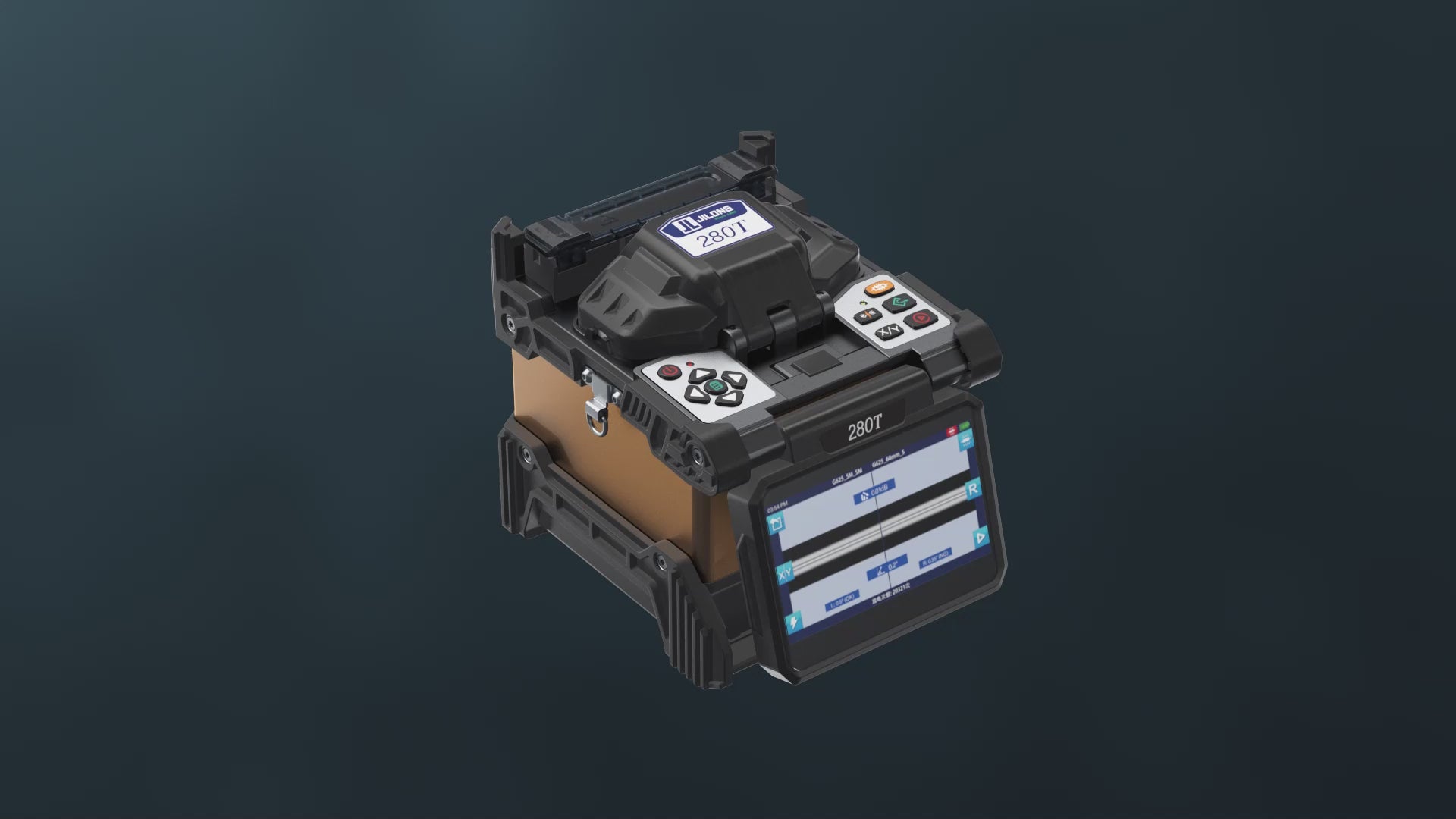

280T - Vision in Motion

Experience the power and versatility of the 280T in action

FAQs

Common Causes:

Environmental Changes: Significant shifts in air pressure, temperature, or humidity (e.g., moving from indoors to a high-altitude outdoor site).

Electrode Aging: Heavy carbon buildup on the electrodes, or they have reached the end of their lifespan.

Solutions:

Always perform an Arc Calibration whenever you change your working environment or replace the electrodes, allowing the machine to automatically adjust the current.

If the arc calibration fails repeatedly, try cleaning the carbon buildup off the electrodes using a cotton swab dipped in alcohol, or replace them with a new pair.

Troubleshooting Steps:

Poor Cleave Angle: The fiber cleaver blade is worn out or dirty, resulting in burrs or a cleave angle that is too large (greater than 1 degree).

Dirty V-Grooves or Clamps: Microscopic dust particles can cause the fibers to misalign axially.

Mismatched Fiber Types: For example, attempting to splice Single-Mode (SM) with Multi-Mode (MM) fibers.

Solutions:

Clean the fiber and re-cleave it.

Use a specialized brush or an alcohol-swapped cotton bud to clean the V-grooves and objective lenses.

Ensure the current splicing program selected on the machine (e.g., Auto, SM, MM) matches the actual fiber type.

Impact Assessment: Yes, it will severely affect transmission quality. A dark line usually indicates poor alignment or damaged fiber, while bubbles mean air or impurities are trapped inside the splice.

Main Causes:The fiber end-face was not cleaned properly, leaving coating residue, dust, or moisture.The cleave quality was poor, leaving a highly uneven end-face.

Correct Procedure:Strictly follow the "Strip $\rightarrow$ Clean $\rightarrow$ Cleave" sequence.Remember, once the fiber is cleaved, its end-face must never touch any surface. Place it directly into the fusion splicer and redo the splice.

Troubleshooting Steps:

Check Heating Parameters: Confirm that the selected heating mode matches the length of the protection sleeve you are using (e.g., 40mm or 60mm).

Check the Heater Lid: Some models require the heater lid to be completely closed to trigger the heating process.

Adjust Heating Time: In cold or low-temperature environments, the default heating time might be insufficient. You can manually extend the heating time or increase the heating temperature in the settings.

Three Golden Rules of Maintenance:

Keep it Clean (Most Important): After every job, use a blower brush to remove fiber shards and dust from the fiber clamps, V-grooves, and mirrors. Periodically clean the objective lenses gently with a slightly moistened alcohol swab.

Electrode Management: Electrodes typically have a lifespan of 3,000 to 5,000 arcs. Replace them promptly once the arc count reaches its limit or if the tips show severe oxidation.

Battery Care: If the device will not be used for a long time, charge the lithium battery to about 50%–70%, remove it, and store it separately. Recharge and discharge it every 2 to 3 months to prolong its lifespan.
