KL-520 FTTx Fiber Fusion Splicer

Name: KL-520 FTTx Fiber Fusion Splicer
Brand: JILONG
Price: 527.49 USD
Availability: InStock

$527.49

● Fast-splicing 8S Fast-heating 18s

● 5000 Times electrode life

● Average loss under 0.01dB

● 3.5" TFT color LCD

● FTTx Fiber optic fusion splicer. Easy to operate

● 10000 Groups of fusion records/ 2000 groups images

JILONG

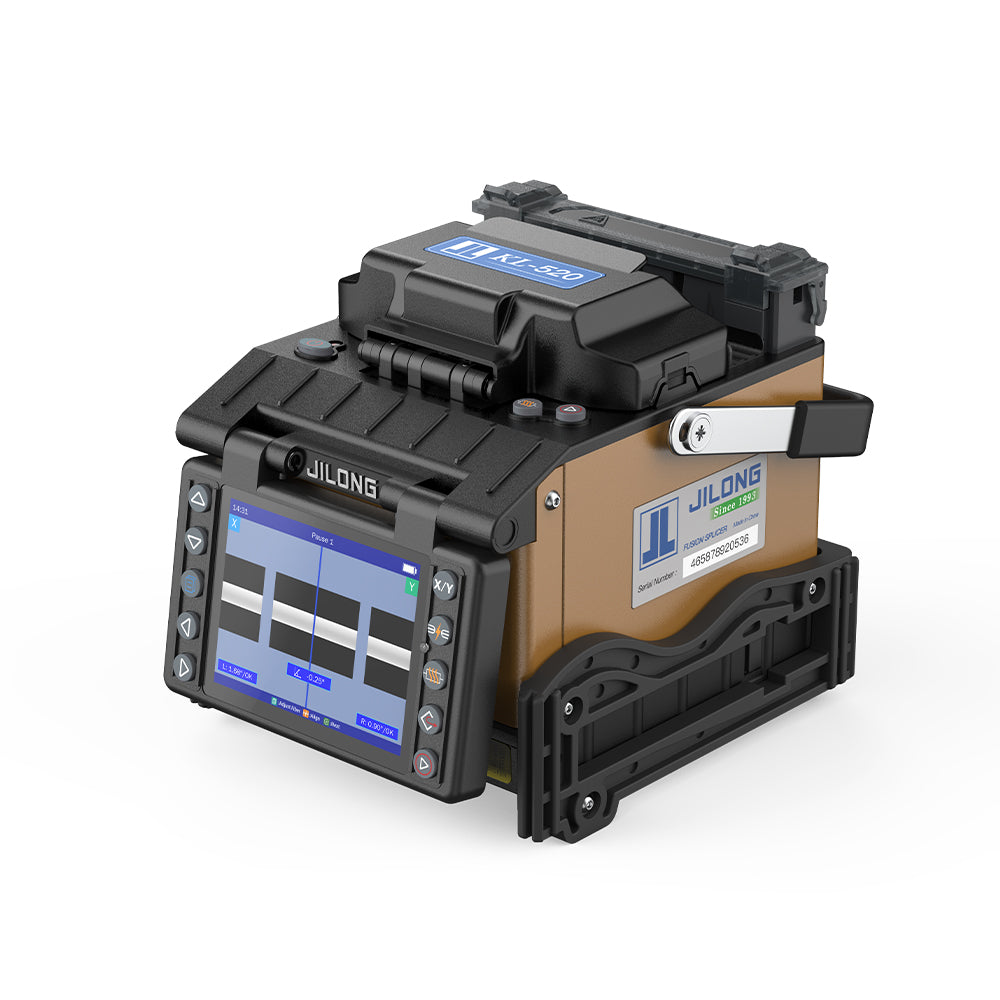

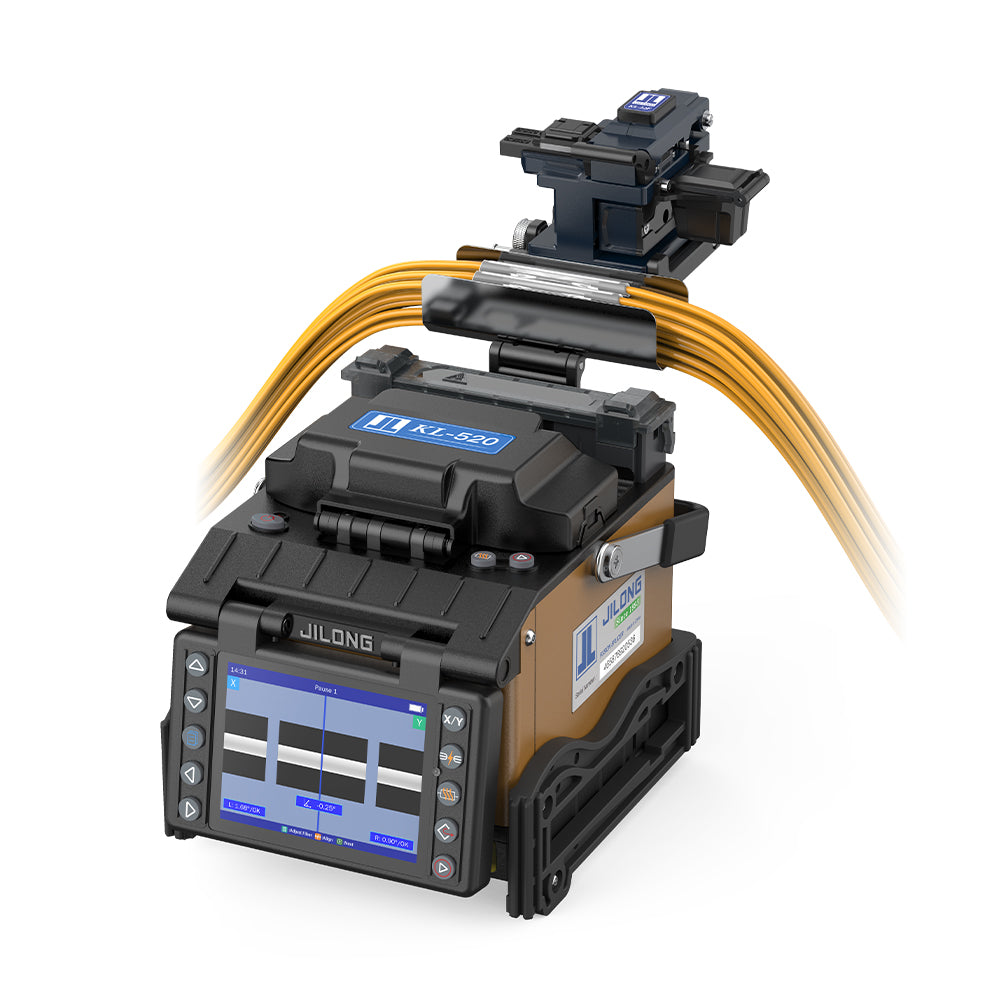

KL-520 FTTx Fiber Fusion Splicer

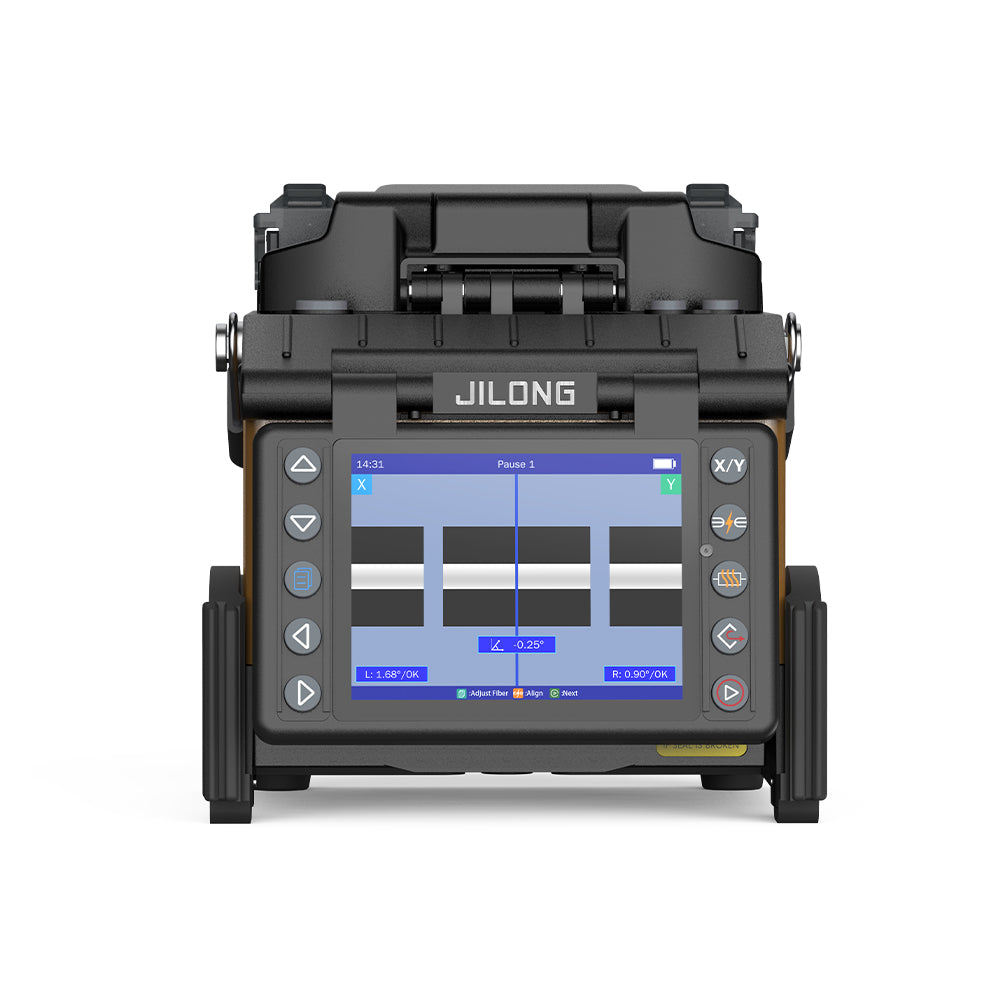

KL-520 FTTx Fiber Fusion Splicer

● Four-motor cladding alignment
● Dual cameras, solid three-proof design
● Three-year warranty
● Adapt to welding + heating in various environments
● Waterproof, dustproof and dropproof

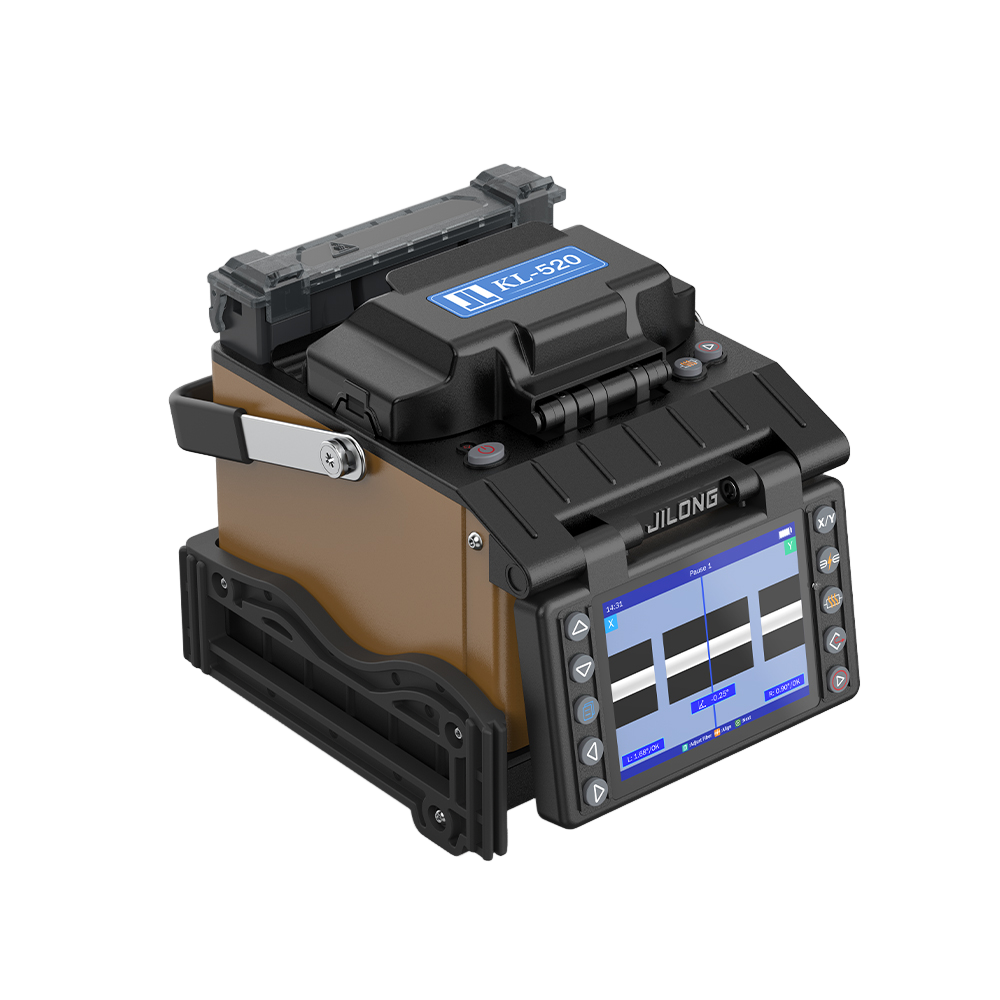

KL-520 FTTx Fiber Fusion Splicer

Discover how the KL-520 can improve the efficiency of fused fiber

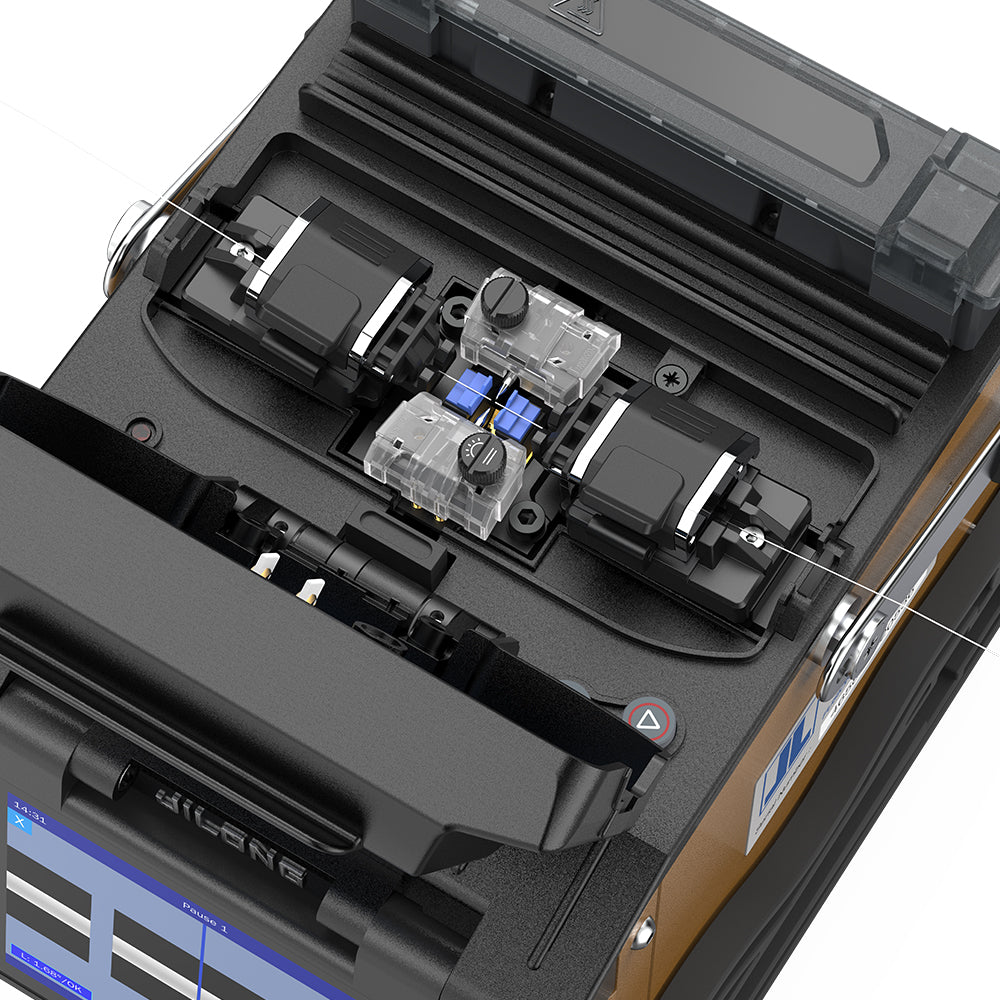

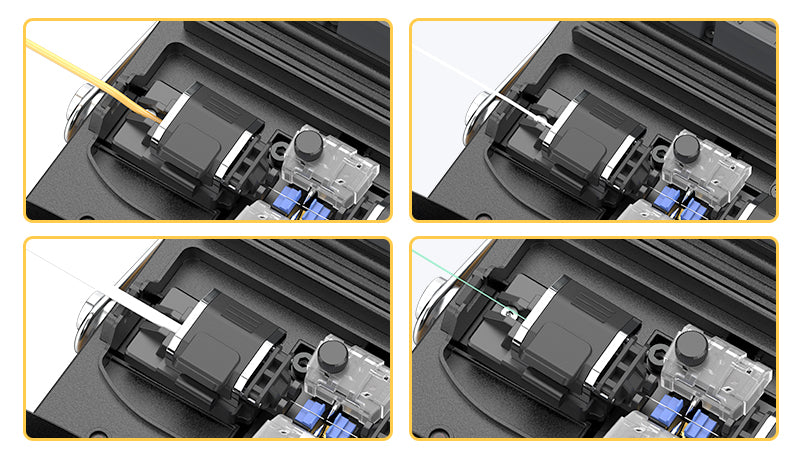

Tool-free installation of electrode rods

● The life of the electrode is about 5000 times
● The electrode rod can be easily disassembled without tools
● When the welding times are too high and the loss is too large, please replace the electrode rod as soon as possible

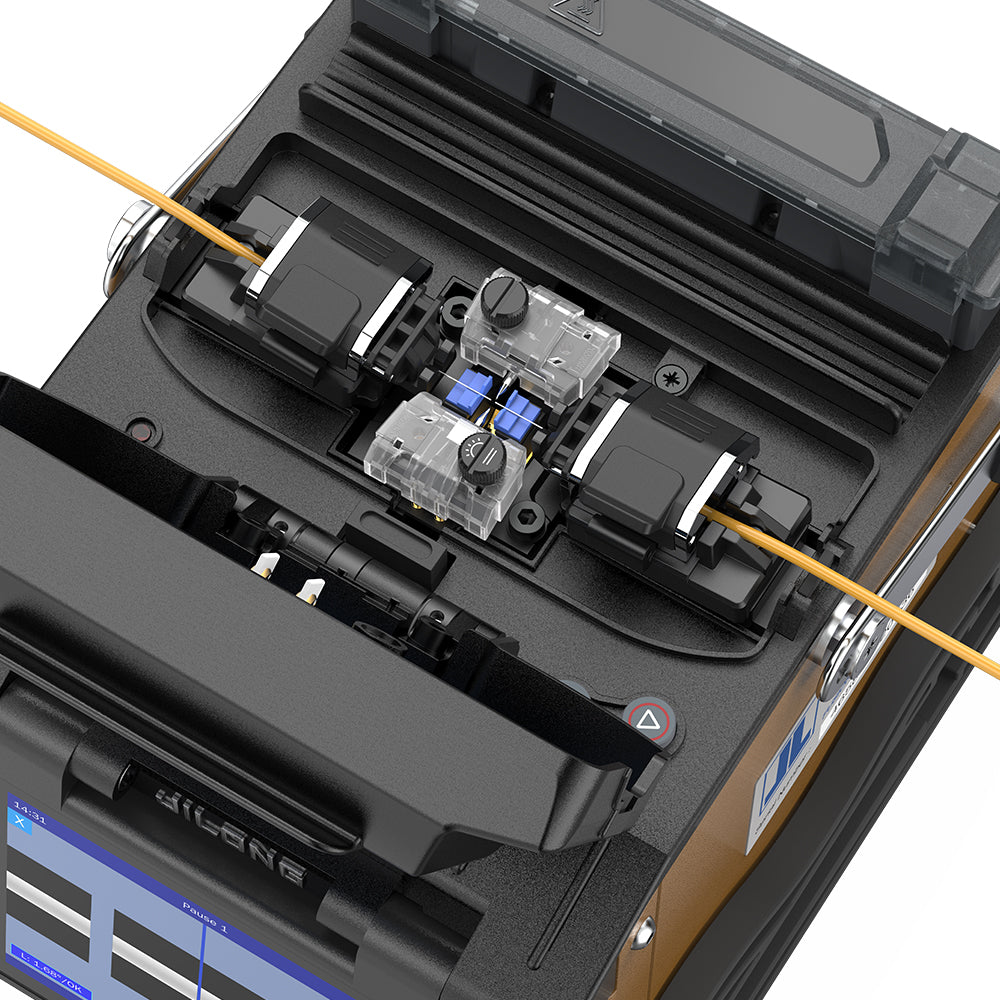

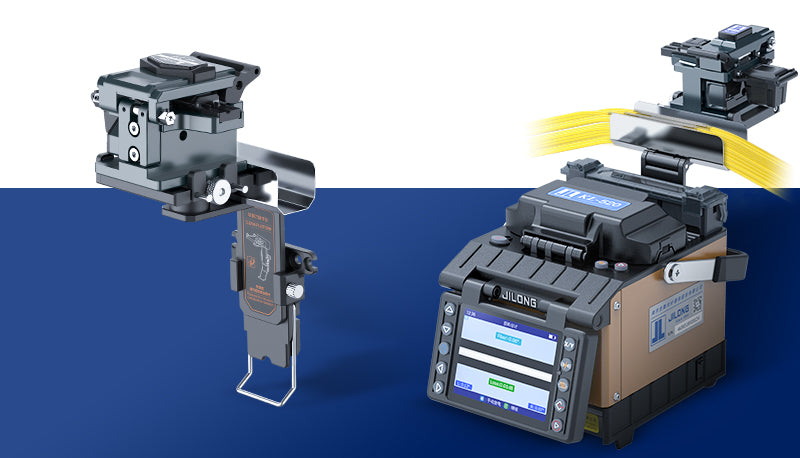

3 in 1 Universal Fixture

● jumper line
● pigtail
● leather line
● bare fiber

Product Specifications

Key specifications at a glance—defining quality and performance through data.

Splice Method	Active Clad-Alignment
Applicable Fibers	SM(ITU-T G.652&G.657) / MM(ITU-T G.651) / DS(ITU-T G.653) / NZDS(ITU-T G.655)
Compatible Fiber/Cable	0.25~3.0mm/Drop Cable
Fiber Holder	Replaceable (Universal: FH-60, SOC Holder: FH-SOC(optional))
Fiber Diameter	Cladding: 80-150μm，Coating: 100~1000μm
Fiber Cleave Length	8~16 mm
Splice mode	Max 128 modes
Typical Splice Loss	SM: 0.03dB / MM: 0.01dB / DS: 0.04dB / NZDS: 0.04dB / G.657: 0.03dB ★①
Return Loss	>>60dB
Splicing Time	SM Quick mode : 8 sec / SM Average: 10 Sec
Estimated Splice Loss :	Available
Heating Time	Quick mode 18 sec.(SM G652 250μm 40mm Sleeve) adjustable
Protection Sleeve Length	20mm, 30mm, 40mm, 50mm, 60mm
Heat Programs	Max 32 modes
Battery	5200mAh Battery Capacity, Typical 300 Cycles (Splice&Heat) per Charge ★②
Electrode Life	5000 arcs, can be extended by using an electrode grinder ★③
Auto-start	Splice / Heating
Automatic Fiber Identification	/
Automatic ARC Identification	Automatic arc calibration by air pressure and temperature
Results Storage	10,000 splice records or 2,000 splice images
Tension Test	1.96~2.25N
Operating Condition	Altitude: 0~5000m, 0~95% relative humidity, -20~50°C, Max Wind 15m/s
Storage Condition	0~95% relative humidity, -20~60°C
Display	3.5-inch color high resolution (800 x 480) display
Fiber Magnification	X, Y, XY, X/Y : 320X Magnification
Power Supply	AC Input 100-240V, DC Input 9-14V
Terminal	USB2.0
Weight	1.59kg(without battery)/1.92kg(with battery)
Size	155H x 138W x 145D mm (including rubber bumper)

★① With identical fibers(in room temperature). Measured by cut-back method relevant to ITU-T and IEC standards.
★② Splice & Heat cycles may vary depending on the battery status and the operating environment.
★③ Electrode life may vary depending on the operating environment.

Packing List

Ensuring every core component and accessory arrives in perfect condition.

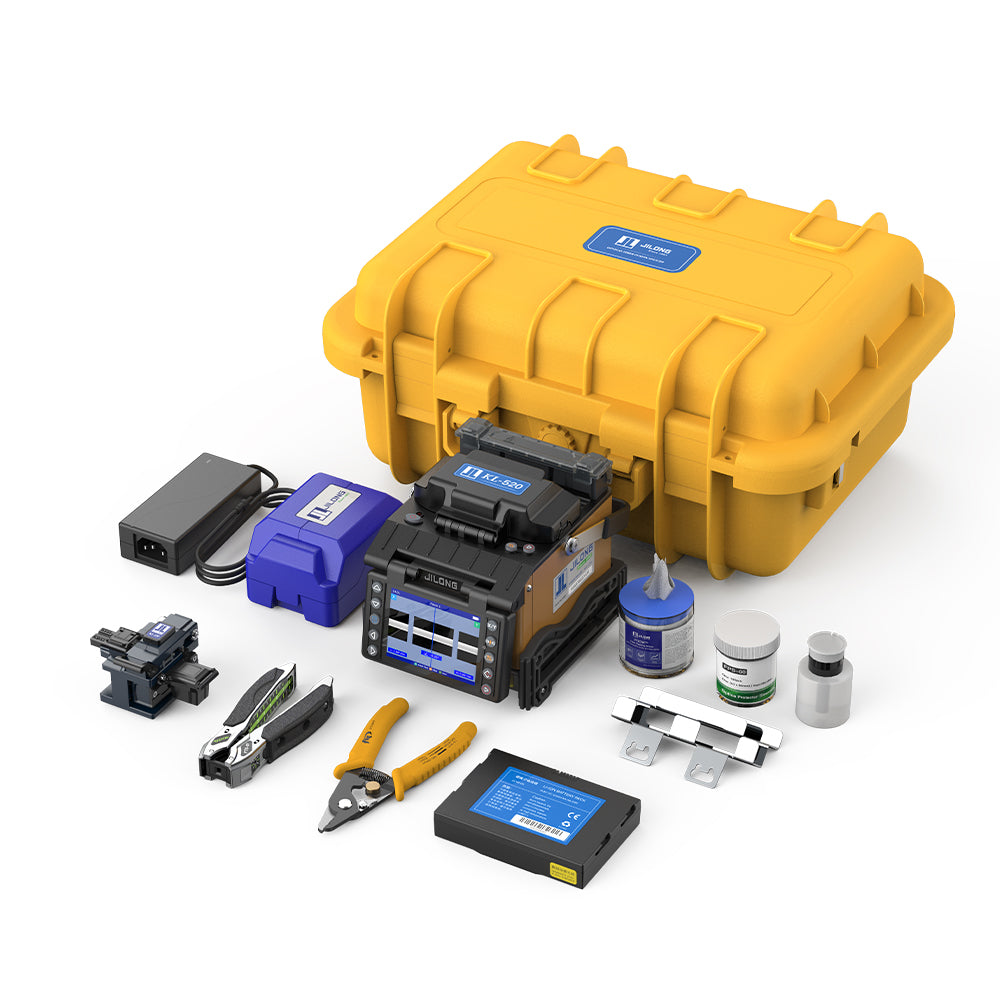

KL-520 Fiber Fusion Splicer Packing List

Carrying case * 1
Power charger * 1
Cutter storage box * 1
KL-520 Fusion splicer * 1
Alcohol bottle * 1
FPS-60 Splicing protector sleeves * 1
FOCW Cleaning wipes(box) * 1

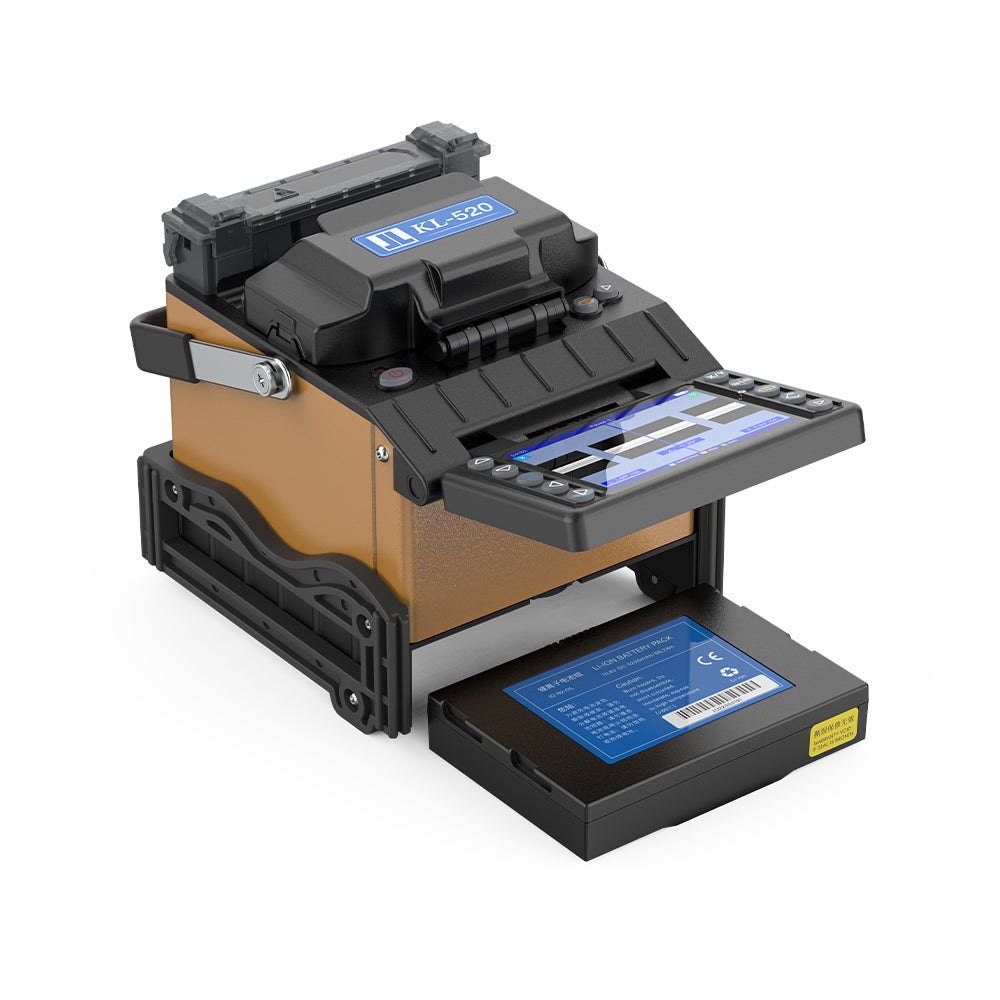

Lithium battery * 1
KL-22F Fiber optic cleaver * 1
FTS-01 Drop cable stripper * 1
FIS-FT11301T 3-hole fiber stripper * 1

KL-520 - Vision in Motion

Experience the power and versatility of the KL-520 in action

请添加YouTube视频链接

FAQs

Common Causes:

Environmental Changes: Significant shifts in air pressure, temperature, or humidity (e.g., moving from indoors to a high-altitude outdoor site).

Electrode Aging: Heavy carbon buildup on the electrodes, or they have reached the end of their lifespan.

Solutions:

Always perform an Arc Calibration whenever you change your working environment or replace the electrodes, allowing the machine to automatically adjust the current.

If the arc calibration fails repeatedly, try cleaning the carbon buildup off the electrodes using a cotton swab dipped in alcohol, or replace them with a new pair.

Troubleshooting Steps:

Poor Cleave Angle: The fiber cleaver blade is worn out or dirty, resulting in burrs or a cleave angle that is too large (greater than 1 degree).

Dirty V-Grooves or Clamps: Microscopic dust particles can cause the fibers to misalign axially.

Mismatched Fiber Types: For example, attempting to splice Single-Mode (SM) with Multi-Mode (MM) fibers.

Solutions:

Clean the fiber and re-cleave it.

Use a specialized brush or an alcohol-swapped cotton bud to clean the V-grooves and objective lenses.

Ensure the current splicing program selected on the machine (e.g., Auto, SM, MM) matches the actual fiber type.

Impact Assessment: Yes, it will severely affect transmission quality. A dark line usually indicates poor alignment or damaged fiber, while bubbles mean air or impurities are trapped inside the splice.

Main Causes:The fiber end-face was not cleaned properly, leaving coating residue, dust, or moisture.The cleave quality was poor, leaving a highly uneven end-face.

Correct Procedure:Strictly follow the "Strip→Clean→Cleave" sequence.Remember, once the fiber is cleaved, its end-face must never touch any surface. Place it directly into the fusion splicer and redo the splice.

Troubleshooting Steps:

Check Heating Parameters: Confirm that the selected heating mode matches the length of the protection sleeve you are using (e.g., 40mm or 60mm).

Check the Heater Lid: Some models require the heater lid to be completely closed to trigger the heating process.

Adjust Heating Time: In cold or low-temperature environments, the default heating time might be insufficient. You can manually extend the heating time or increase the heating temperature in the settings.

Three Golden Rules of Maintenance:

Keep it Clean (Most Important): After every job, use a blower brush to remove fiber shards and dust from the fiber clamps, V-grooves, and mirrors. Periodically clean the objective lenses gently with a slightly moistened alcohol swab.

Electrode Management: Electrodes typically have a lifespan of 3,000 to 5,000 arcs. Replace them promptly once the arc count reaches its limit or if the tips show severe oxidation.

Battery Care: If the device will not be used for a long time, charge the lithium battery to about 50%–70%, remove it, and store it separately. Recharge and discharge it every 2 to 3 months to prolong its lifespan.
